Q14F1CXXHW110E Hyper White Flush 14mm 110VAC LED Panel Indicator IP67 APEM
by APEM
SKU 492582
MPN: Q14F1CXXHW110E
Availability:
30 in stock
Original price
£9.66
-
Original price
£9.66
Original price
£9.66
£9.66
£9.66
-
£9.66
Current price
£9.66

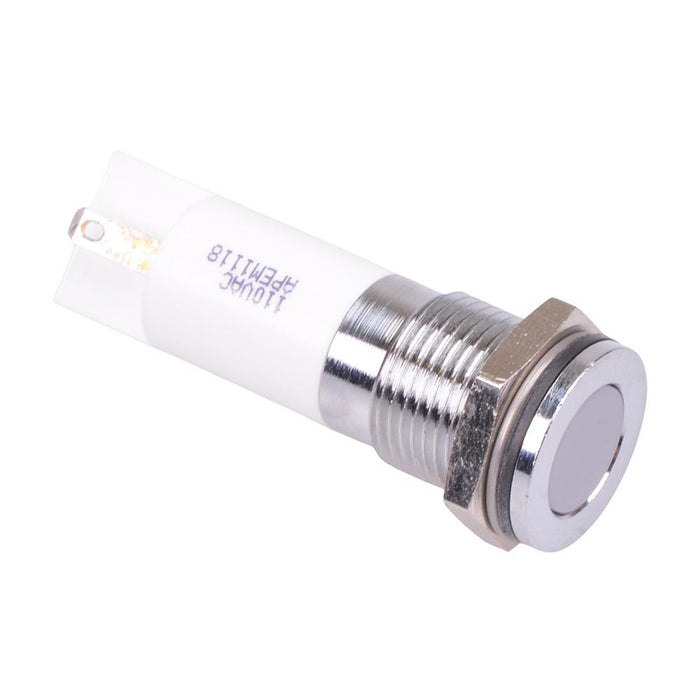

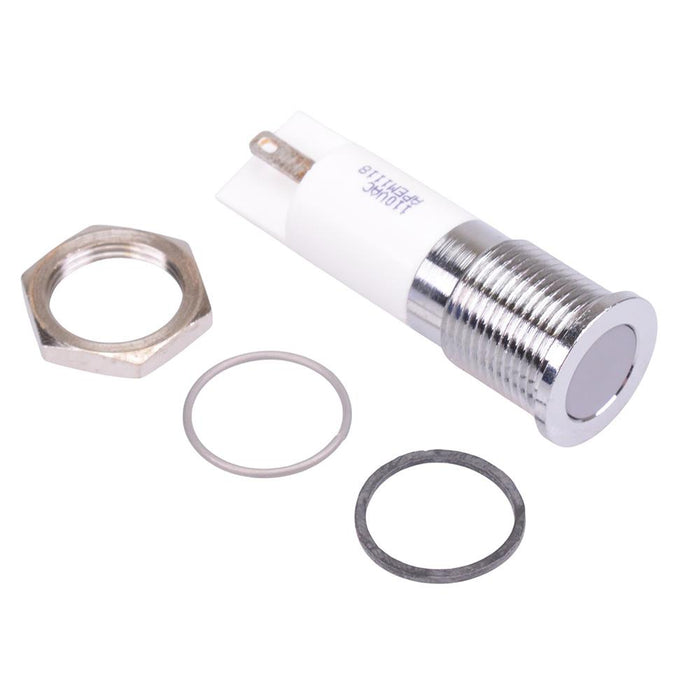

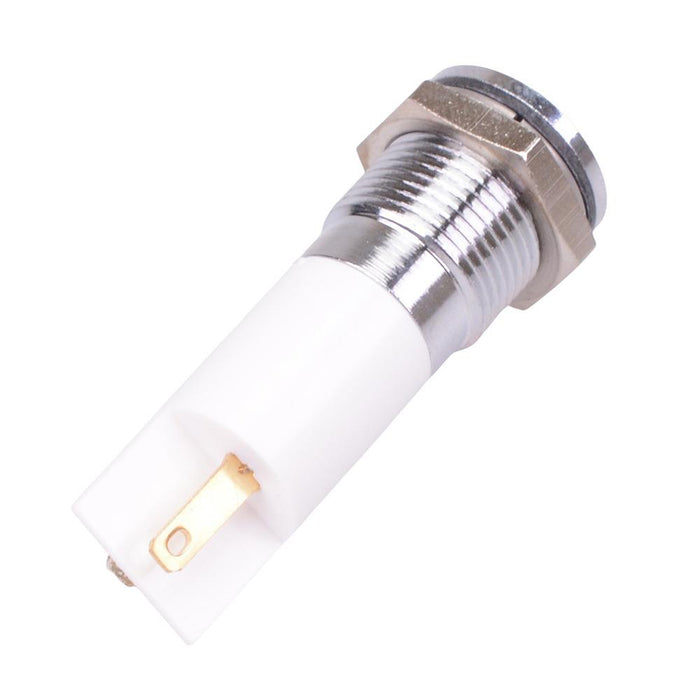

The Q14F1CXXHW110E is a hyper bright white panel mount LED indicator from the APEM Q14 series, featuring a 14mm cut-out and sealed to IP67. The indicator features a flush chrome bezel and 2.8mm quick connect terminals. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: white Panel cut-out: 14mm Voltage rating: 110VAC Current rating: 6mA Panel thickness: 11mm max Operating voltage: 99 to 121VAC Bezel material: chrome plated brass Protection level: IP67 Terminal type: quick connect / solder 2.8 x 0.8mm Length: 35.6mm Diameter: 16mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | White |
| Diameter | 16mm |
| Forward Current | 6mA |
| Lamp Type | LED |
| Length | 35.6mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 14mm |
| Panel Thickness | 11mm Max |
| Protection Level | IP67 |
| Voltage Rating | 110VAC |
