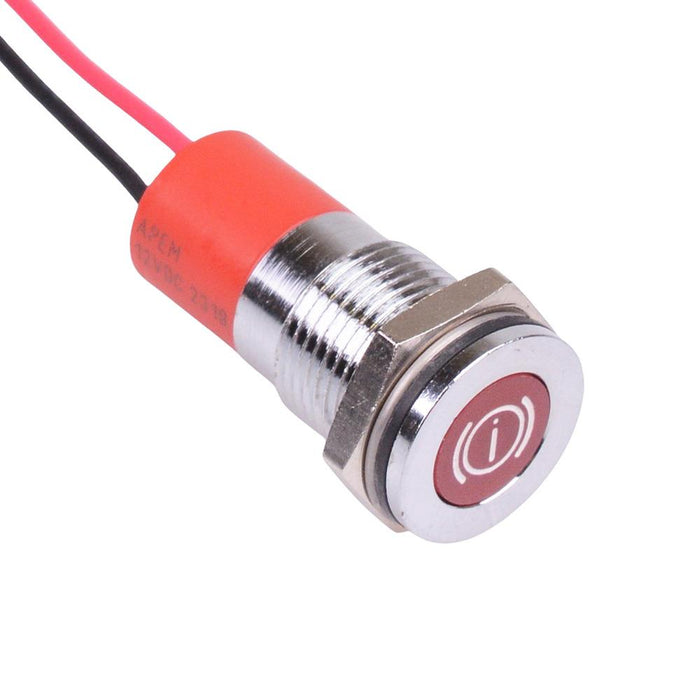

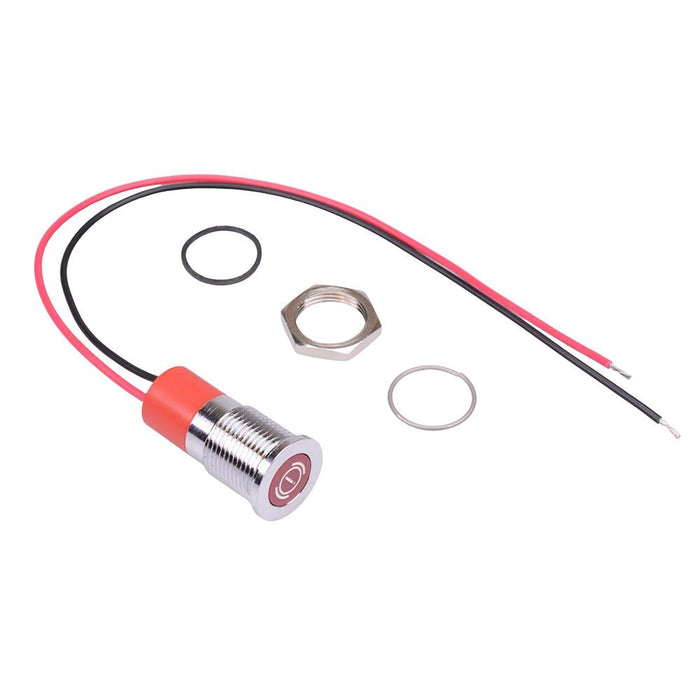

Q14F3CXXR12E-C Red Brake Test Flush 14mm 12VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492585
MPN: Q14F3CXXR12E-C
Availability:
25 in stock
Original price
$16.87
-
Original price
$16.87
Original price
$16.87
$16.87
$16.87
-
$16.87
Current price
$16.87
The Q14F3CXXR12E-C is a red panel mount LED indicator from the APEM Q14 series, featuring a 14mm cut-out and sealed to IP67. The indicator features a flush chrome bezel and 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: red Panel cut-out: 14mm Voltage rating: 12VDC Current rating: 20mA Panel thickness: 11mm max Brightness: 10mcd Operating voltage: 10.8 to 13.2VDC Bezel material: chrome plated brass Protection level: IP67 Terminal type: 200mm wires Length: 30.6mm Diameter: 16mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Diameter | 16mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 30.6mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 14mm |
| Panel Thickness | 11mm Max |
| Protection Level | IP67 |
| Voltage Rating | 12VDC |
