Q14P3BZZRYG28E-X0321 Red / Green / Yellow Prominent 14mm 28VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492606
MPN: Q14P3BZZRYG28E-X0321
Availability:
Only 2 left!
Original price
£14.28
-
Original price
£14.28
Original price
£14.28
£14.28
£14.28
-
£14.28
Current price
£14.28

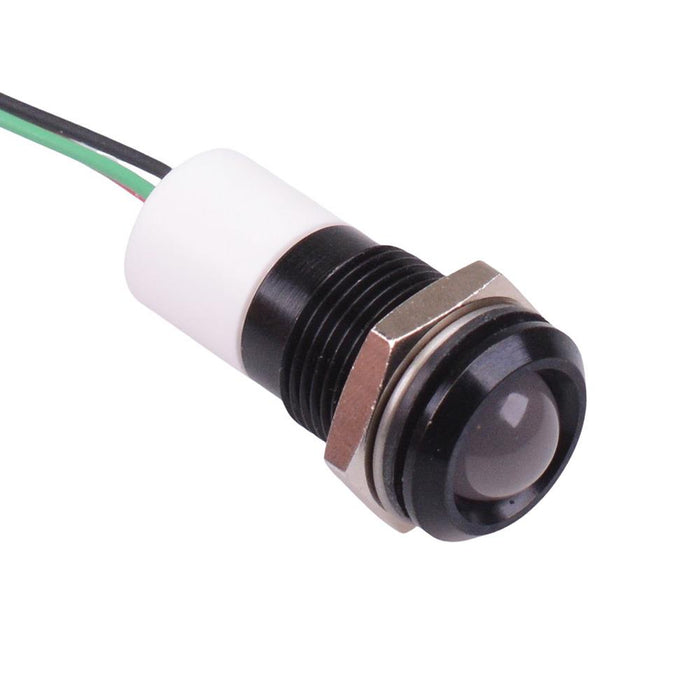

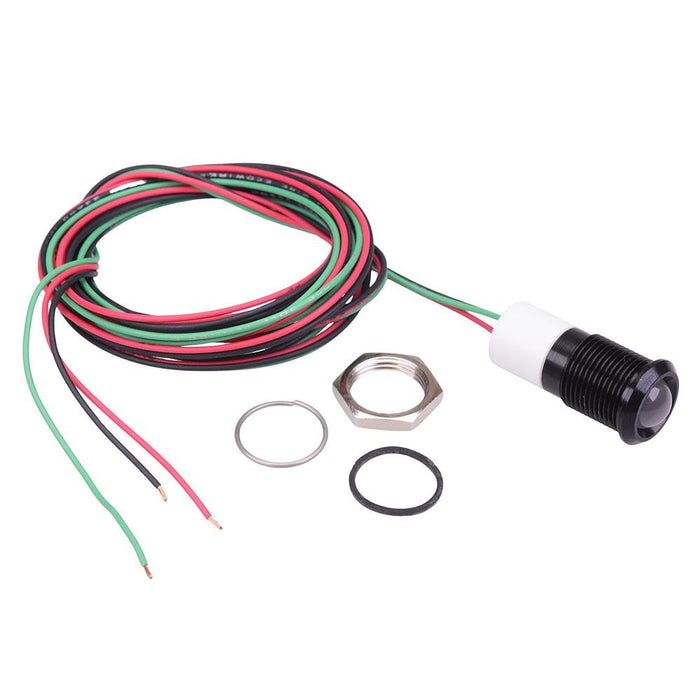

The Q14P3BZZRYG28E-X0321 is a tri-colour red green yellow panel mount indicator from the APEM Q14 series, featuring a 14mm cut-out and sealed to IP67. The indicator features a prominent black plated brass bezel and 1.5m tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: red / green / yellow Panel cut-out: 14mm Voltage rating: 28VDC Current rating: 20mA Panel thickness: 11mm max Brightness: red 15mcd, green 10mcd, yellow 30mcd Operating voltage: 25.2 to 30.8VDC Bezel material: black plated brass Protection level: IP67 Terminal type: 150cm wires Length: 33.5mm Diameter: 16mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red / Green / Yellow |
| Diameter | 16mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 33.5mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 14mm |
| Panel Thickness | 11mm Max |
| Protection Level | IP67 |
| Voltage Rating | 28VDC |
