Q14P3GXXO24AE Orange Prominent 14mm 24V LED Panel Indicator IP67 APEM
by APEM
SKU 492607
MPN: Q14P3GXXO24AE
Availability:
17 in stock
Original price
£8.08
-
Original price
£8.08
Original price
£8.08
£8.08
£8.08
-
£8.08
Current price
£8.08

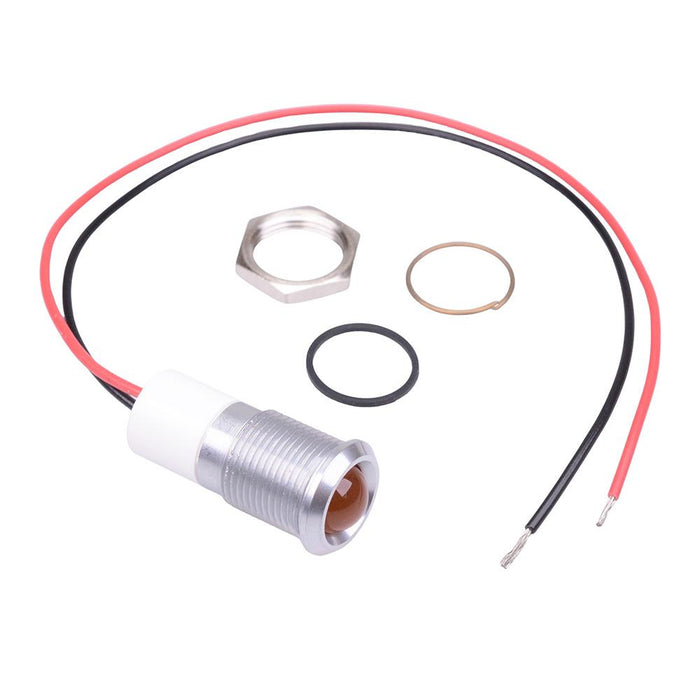

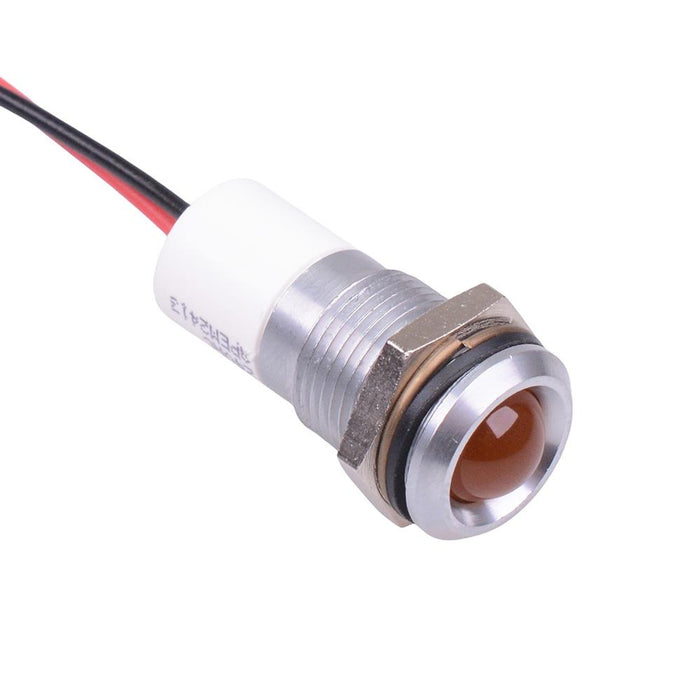

The Q14P3GXXO24AE is a orange panel mount LED indicator from the APEM Q14 series, featuring a 14mm cut-out and sealed to IP67. The indicator features a prominent satin grey plated brass bezel and 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: orange Panel cut-out: 14mm Voltage rating: 24VAC/DC Current rating: 20mA Panel thickness: 11mm max Brightness: 80mcd Operating voltage: 21.6 to 26.4VAC/DC Bezel material: satin grey plated brass Protection level: IP67 Terminal type: 200mm wires Length: 33.5mm Diameter: 16mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Orange |
| Diameter | 16mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 33.5mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 14mm |
| Panel Thickness | 11mm Max |
| Protection Level | IP67 |
| Voltage Rating | 24VAC/DC |
