Q14P5CXXR28E Red Prominent 14mm 28VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492611
MPN: Q14P5CXXR28E
Availability:
225 in stock
Original price
£7.92
-
Original price
£7.92
Original price
£7.92
£7.92
£7.92
-
£7.92
Current price
£7.92

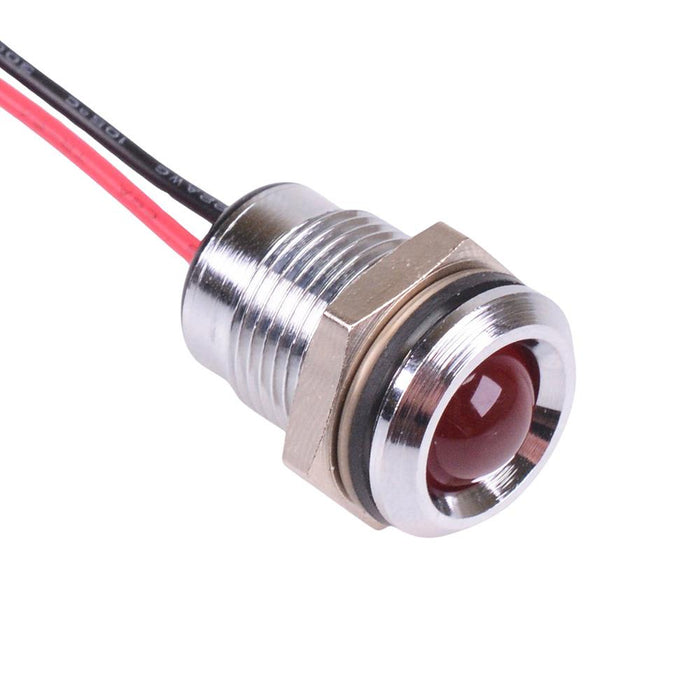

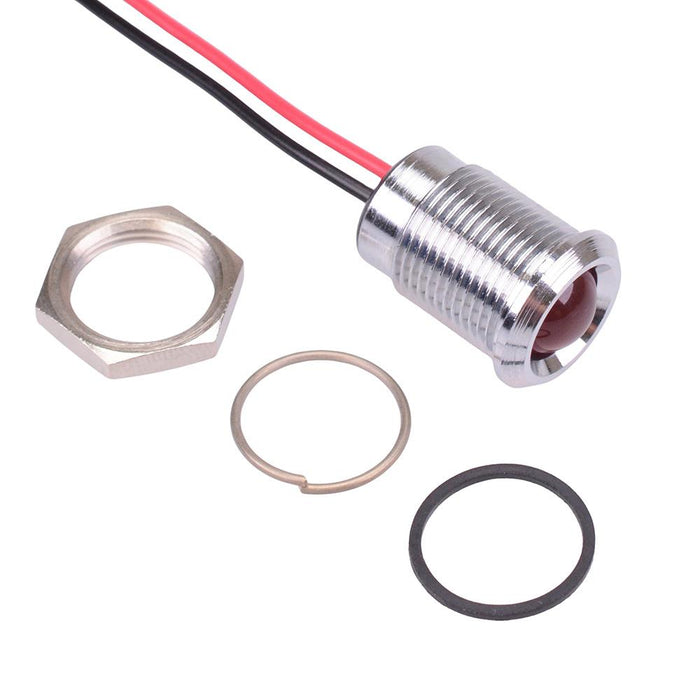

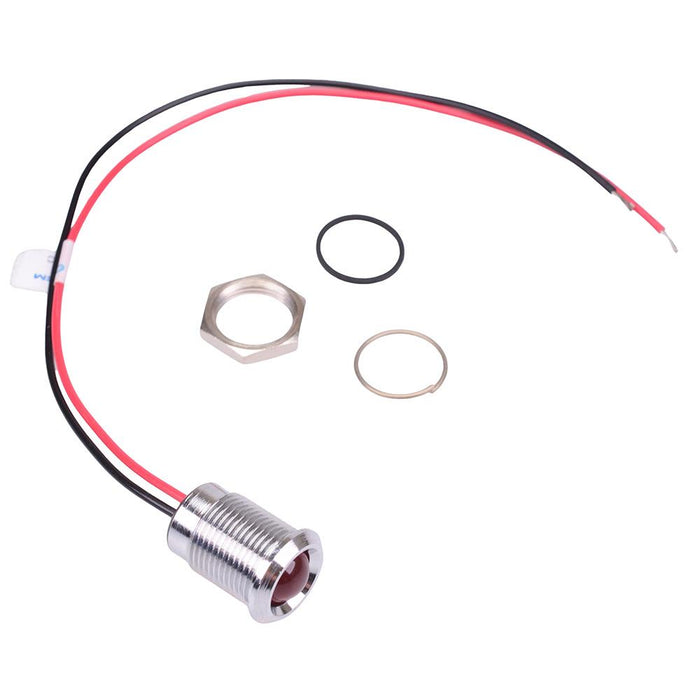

The Q14P5CXXR28E is a red panel mount LED indicator from the APEM Q14 series, featuring a 14mm cut-out and sealed to IP67. The indicator features a prominent chrome bezel and rear epoxy sealed 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: red Panel cut-out: 14mm Voltage rating: 28VDC Current rating: 20mA Panel thickness: 11mm max Brightness: 330mcd Operating voltage: 25.2 to 30.8VDC Bezel material: chrome plated brass Protection level: IP67 Terminal type: rear epoxy 200mm wires Length: 24.75mm Diameter: 16mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Diameter | 16mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 24.75mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 14mm |
| Panel Thickness | 11mm Max |
| Protection Level | IP67 |
| Voltage Rating | 28VDC |
