Q14P5CZZRYG24E-SP Red / Green / Yellow Prominent 14mm 24VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492613
MPN: Q14P5CZZRYG24E-SP
Availability:
391 in stock
Original price
£7.14
-
Original price
£7.14
Original price
£7.14
£7.50
£7.50
-
£7.50
Current price
£7.50

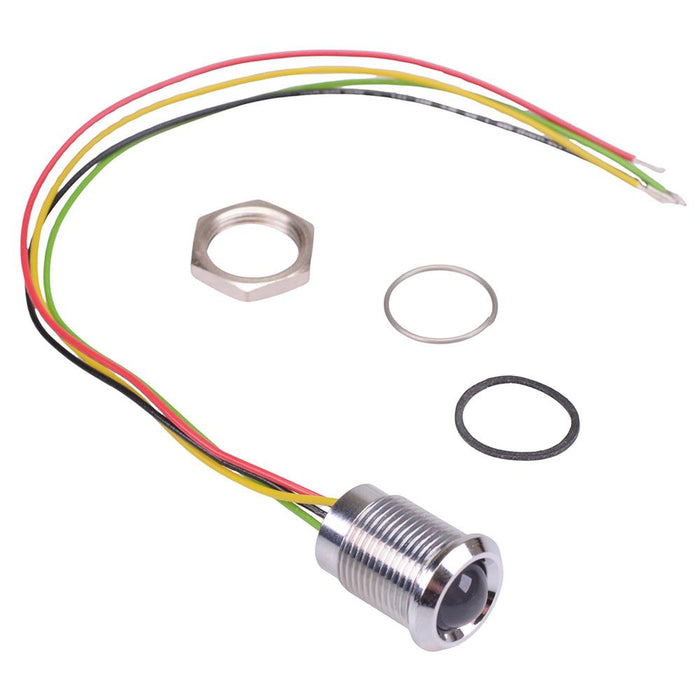

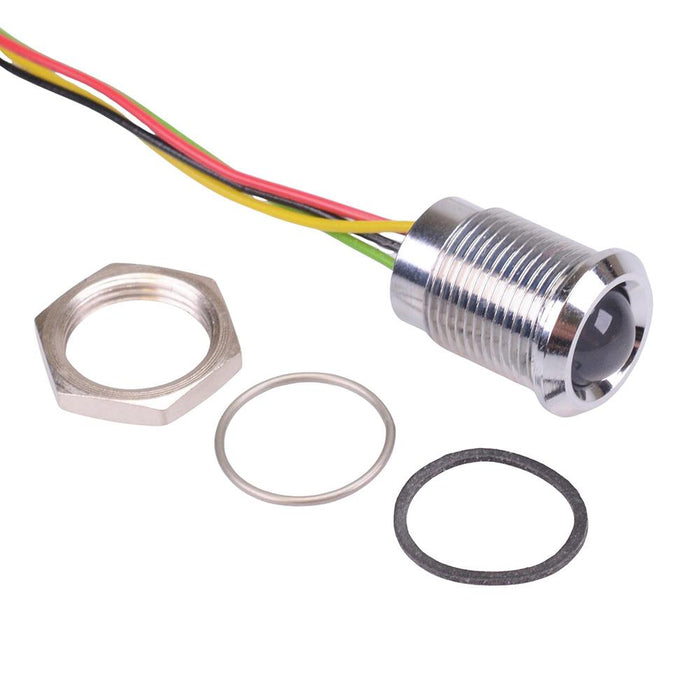

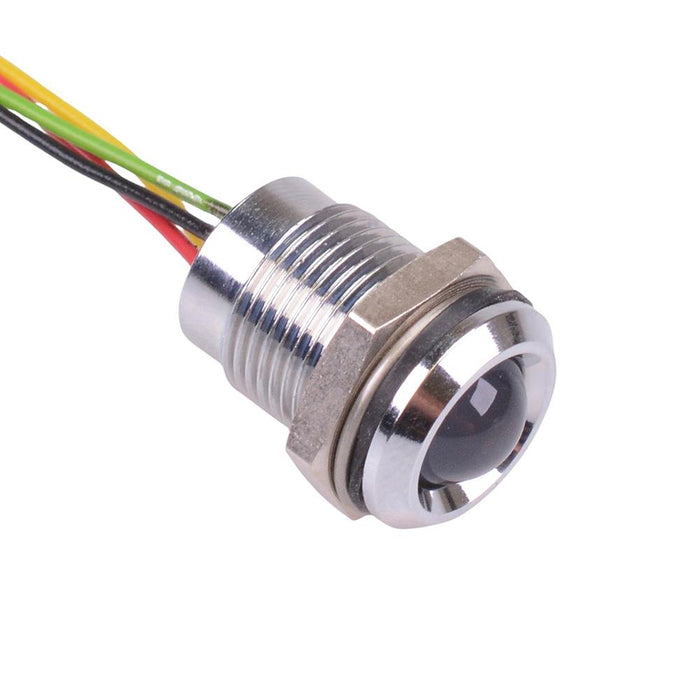

The Q14P5CZZRYG24E-SP is a tri-colour red green yellow panel mount indicator from the APEM Q14 series, featuring a 14mm cut-out and sealed to IP67. The indicator features a prominent chrome bezel and rear epoxy sealed 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: red / green / yellow Panel cut-out: 14mm Voltage rating: 24VDC Current rating: 20mA Panel thickness: 11mm max Brightness: red 60mcd, green 50mcd, yellow 50mcd Operating voltage: 21.6 to 26.4VDC Bezel material: chrome plated brass Protection level: IP67 Terminal type: rear epoxy 200mm wires Length: 24.75mm Diameter: 16mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red / Green / Yellow |
| Diameter | 16mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 24.75mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 14mm |
| Panel Thickness | 11mm Max |
| Protection Level | IP67 |
| Voltage Rating | 24VDC |
