Q22F5ANXXSR110E Super Bright Red Flush 22mm 110VAC LED Panel Indicator IP67 APEM
by APEM
SKU 492633
MPN: Q22F5ANXXSR110E
Availability:
25 in stock
Original price
£23.00
-
Original price
£23.00
Original price
£23.00
£23.00
£23.00
-
£23.00
Current price
£23.00

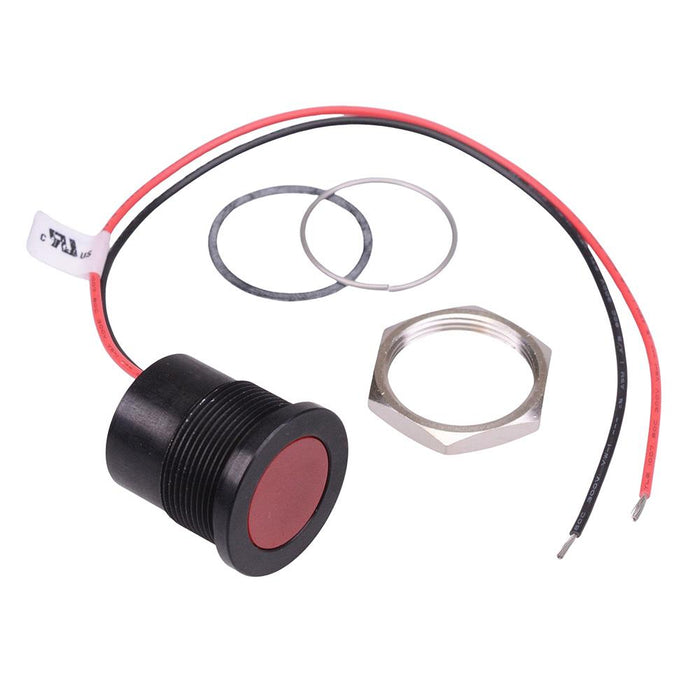

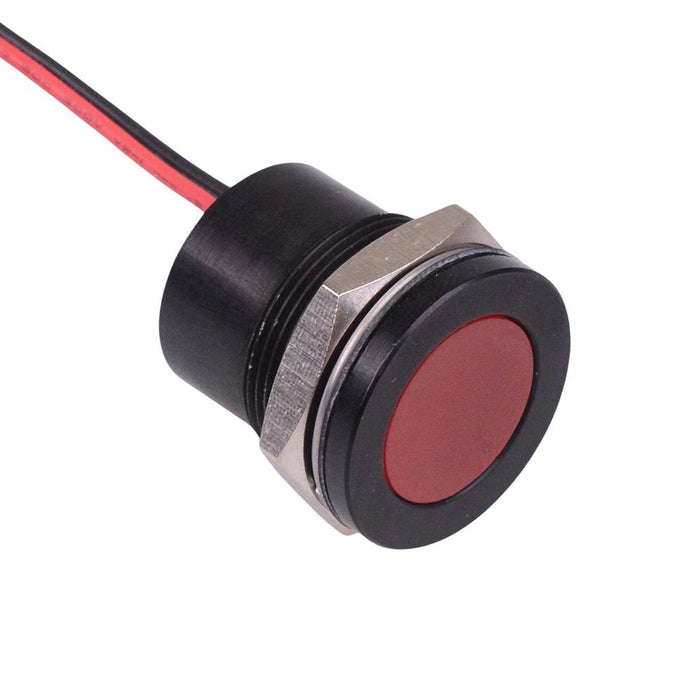

The Q22F5ANXXSR110E is a super bright red panel mount LED indicator from the APEM Q22 series, featuring a 22mm cut-out and sealed to IP67. The indicator features a flush black anodized aluminium bezel and rear epoxy sealed 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: red Panel cut-out: 22mm Voltage rating: 110VAC Current rating: 5mA Panel thickness: 10mm max Brightness: 800mcd Operating voltage: 99 to 121VAC Bezel material: black anodized aluminium Protection level: IP67 Terminal type: rear epoxy 200mm wires Length: 24.5mm Diameter: 25mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Diameter | 25mm |
| Forward Current | 5mA |
| Lamp Type | LED |
| Length | 24.5mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 22mm |
| Panel Thickness | 10mm Max |
| Protection Level | IP67 |
| Voltage Rating | 110VAC |
