Q22FP1BPXXSG28AE Super Bright Green Flush 22mm 28V LED Panel Indicator IP67 APEM
by APEM
SKU 492637
MPN: Q22FP1BPXXSG28AE
Availability:
25 in stock
Original price
£19.69
-
Original price
£19.69
Original price
£19.69
£20.67
£20.67
-
£20.67
Current price
£20.67

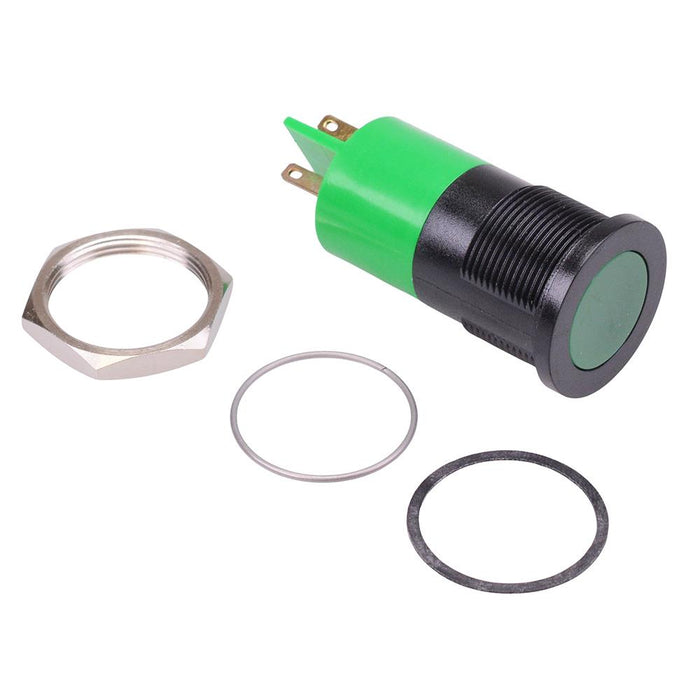

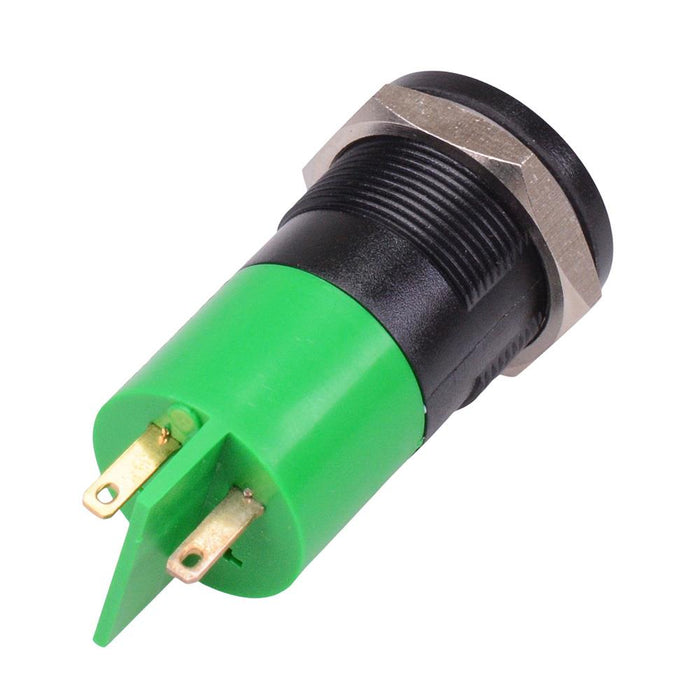

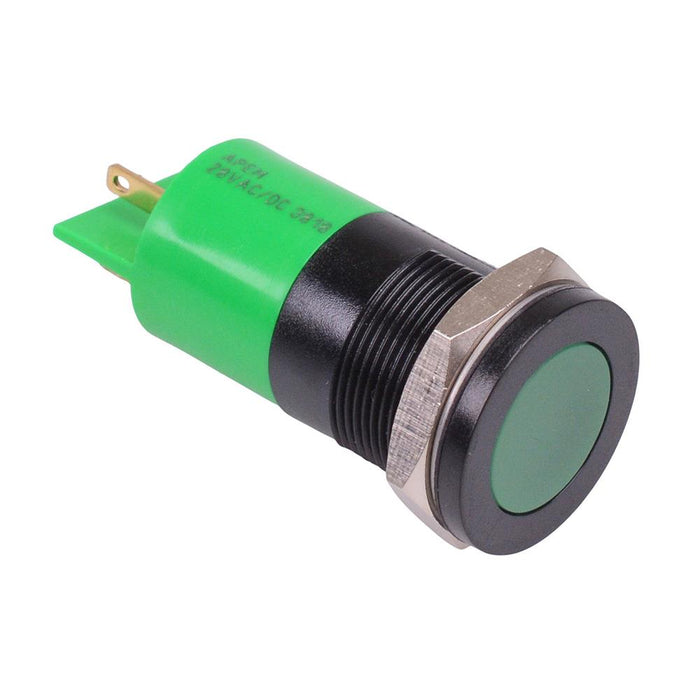

The Q22FP1BPXXSG28AE is a super bright green panel mount LED indicator from the APEM Q22 series, featuring a 22mm cut-out and sealed to IP67. The indicator features a prominent black plastic bezel and 2.8mm quick connect terminals. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: green Panel cut-out: 22mm Voltage rating: 28VAC/DC Current rating: 40mA Panel thickness: 10mm max Brightness: 3300mcd Operating voltage: 25.2 to 30.8VAC/DC Bezel material: black plastic Protection level: IP67 Terminal type: quick connect / solder 2.8 x 0.8mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Green |
| Diameter | 25mm |
| Forward Current | 40mA |
| Lamp Type | LED |
| Length | 41.5mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 22mm |
| Panel Thickness | 10mm Max |
| Protection Level | IP67 |
| Voltage Rating | 28VAC/DC |
