Q22P1CXXR24AEDL Red Prominent 22mm 24V LED Panel Indicator IP67 APEM
by APEM
SKU 492642
MPN: Q22P1CXXR24AEDL
Availability:
15 in stock
Original price
£16.21
-
Original price
£16.21
Original price
£16.21
£16.21
£16.21
-
£16.21
Current price
£16.21

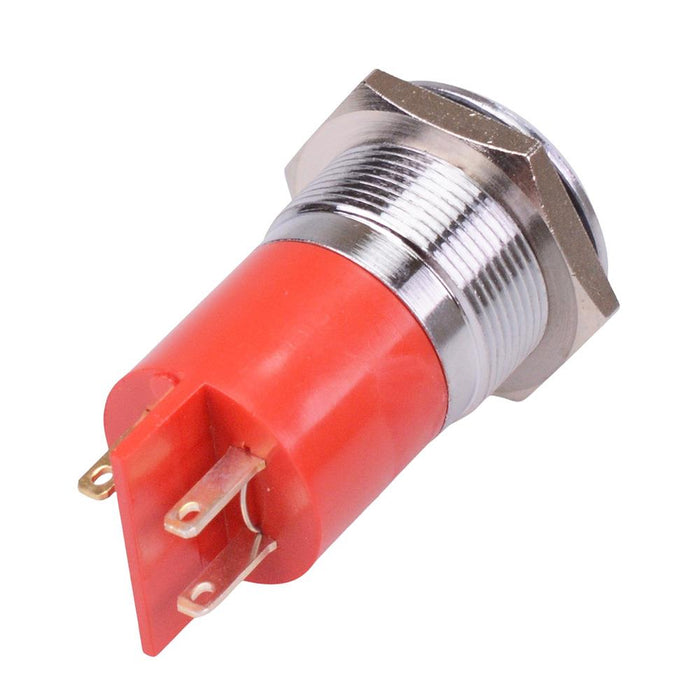

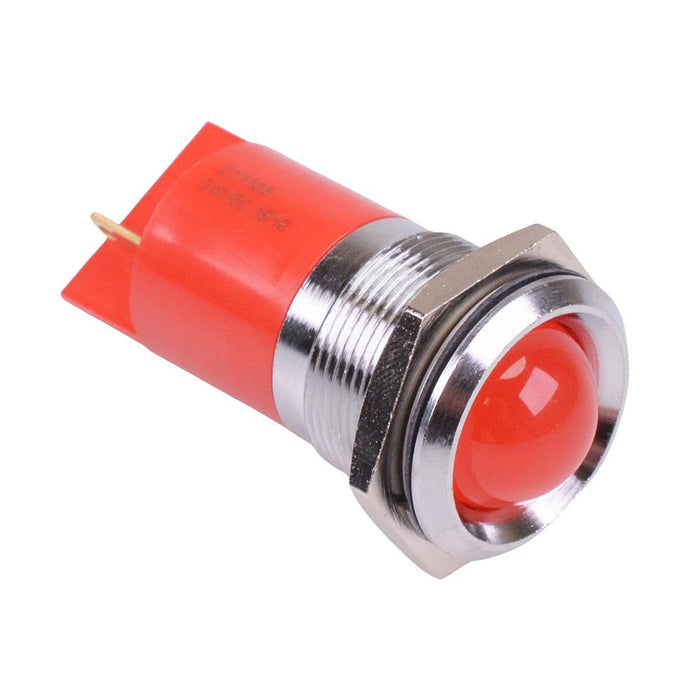

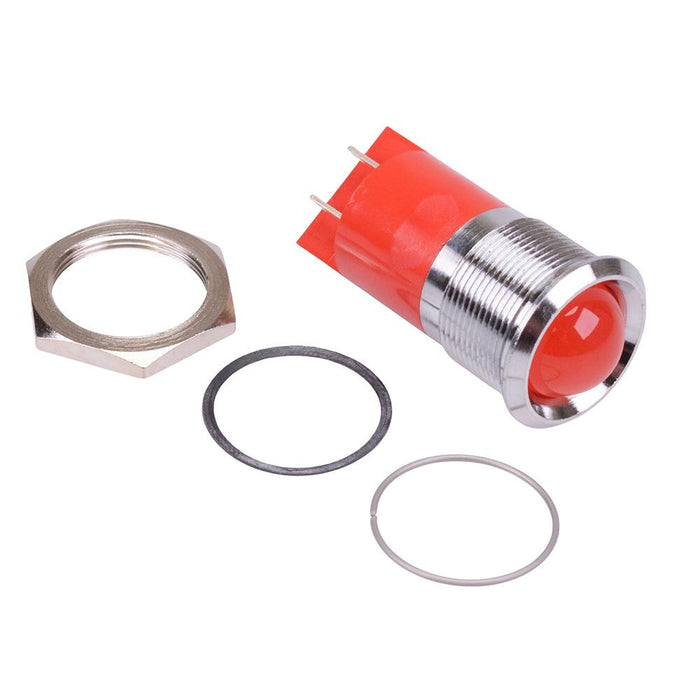

The Q22P1CXXR24AEDL is a red panel mount LED indicator from the APEM Q22 series, featuring a 22mm cut-out and sealed to IP67. The indicator features a prominent chrome bezel and 2.8mm quick connect terminals. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: red Panel cut-out: 22mm Voltage rating: 24VAC/DC Current rating: 40mA Panel thickness: 12mm max Brightness: 82mcd Operating voltage: 21.6 to 26.4VAC/DC Bezel material: chrome plated brass Protection level: IP67 Terminal type: quick connect / solder 2.8 x 0.8mm Length: 41.5mm Diameter: 25mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Diameter | 25mm |
| Forward Current | 40mA |
| Lamp Type | LED |
| Length | 41.5mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 22mm |
| Panel Thickness | 12mm Max |
| Protection Level | IP67 |
| Voltage Rating | 24VAC/DC |
