Q6R3CXXR24 Red Recessed 6mm 24VDC LED Panel Indicator APEM
by APEM
SKU 492661
MPN: Q6R3CXXR24
Availability:
400 in stock
Original price
£5.11
-
Original price
£5.11
Original price
£5.11
£5.11
£5.11
-
£5.11
Current price
£5.11

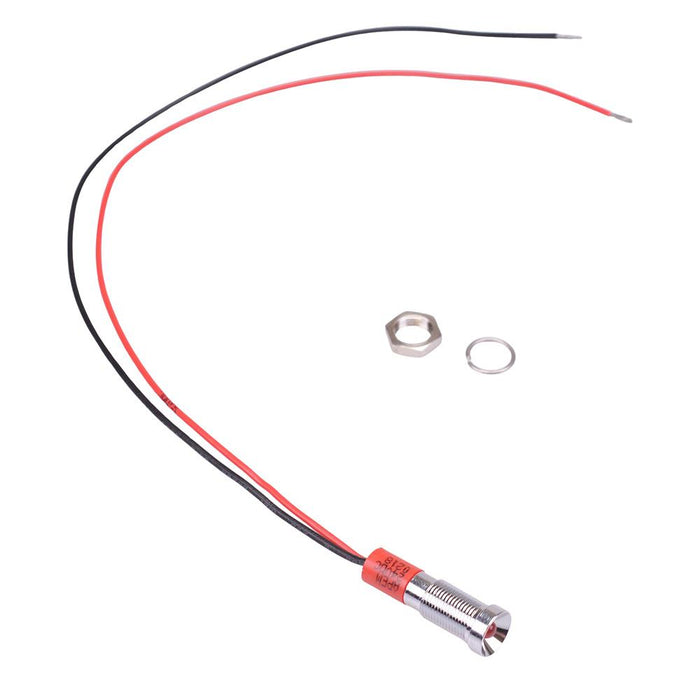

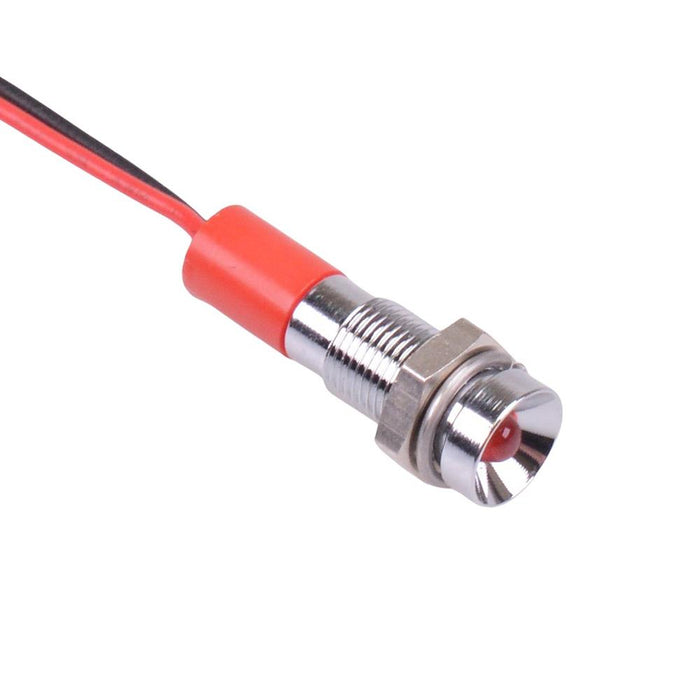

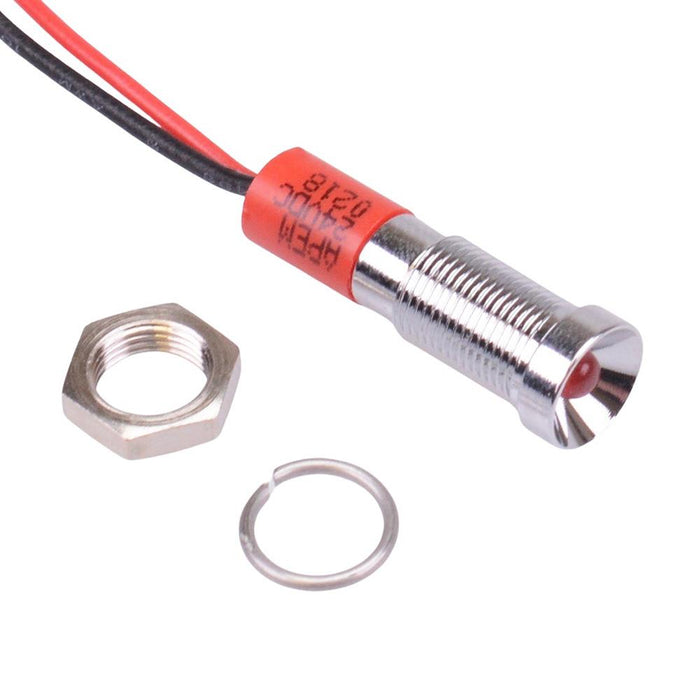

The Q6R3CXXR24 is a red panel mount LED indicator from the APEM Q6 series, featuring a 6mm cut-out. The indicator features a recessed chrome bezel and 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: red Panel cut-out: 6mm Voltage rating: 24VDC Current rating: 20mA Panel thickness: 7mm max Brightness: 40mcd Operating voltage: 21.6 to 26.4VDC Bezel material: chrome plated brass Terminal type: 200mm wires Length: 21mm Diameter: 6.9mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Diameter | 6.9mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 21mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 6mm |
| Panel Thickness | 7mm Max |
| Voltage Rating | 24VDC |
