Q8F7CXXSY02E Super Bright Yellow Flush 8mm 2.1VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492679
MPN: Q8F7CXXSY02E
Availability:
30 in stock
Original price
£5.93
-
Original price
£5.93
Original price
£5.93
£5.93
£5.93
-
£5.93
Current price
£5.93

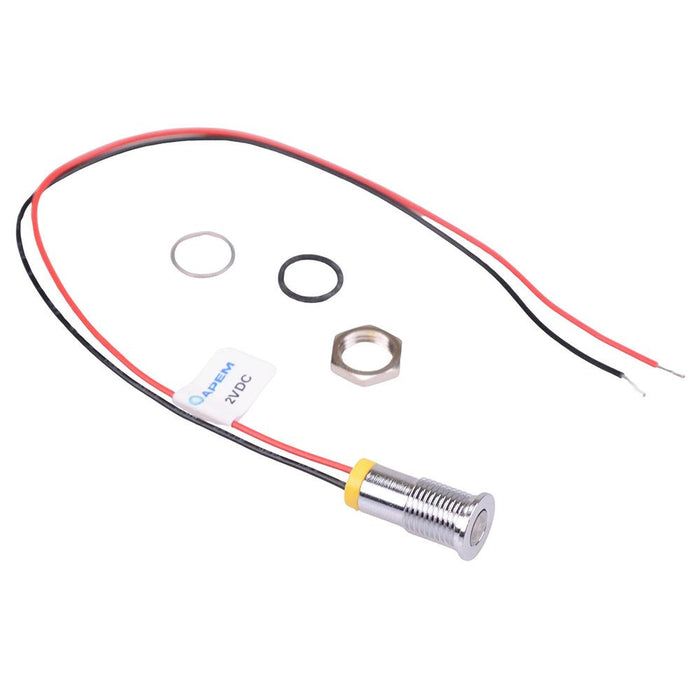

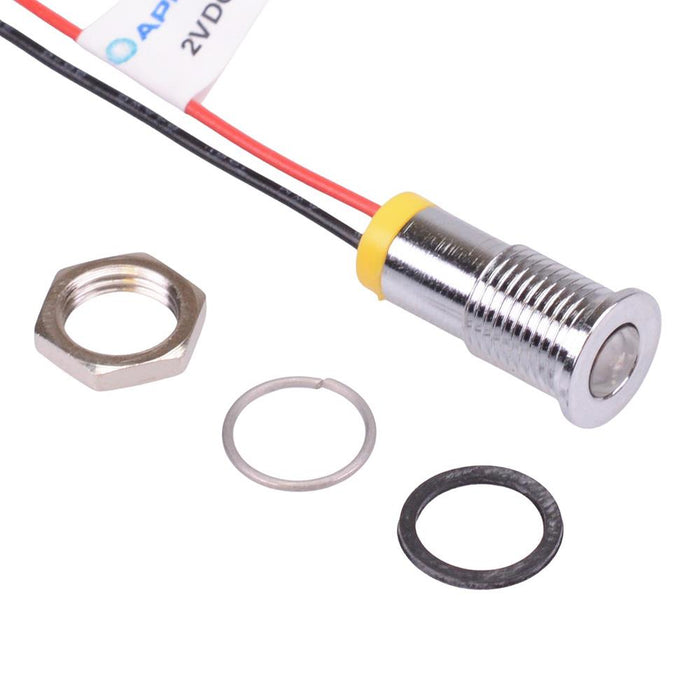

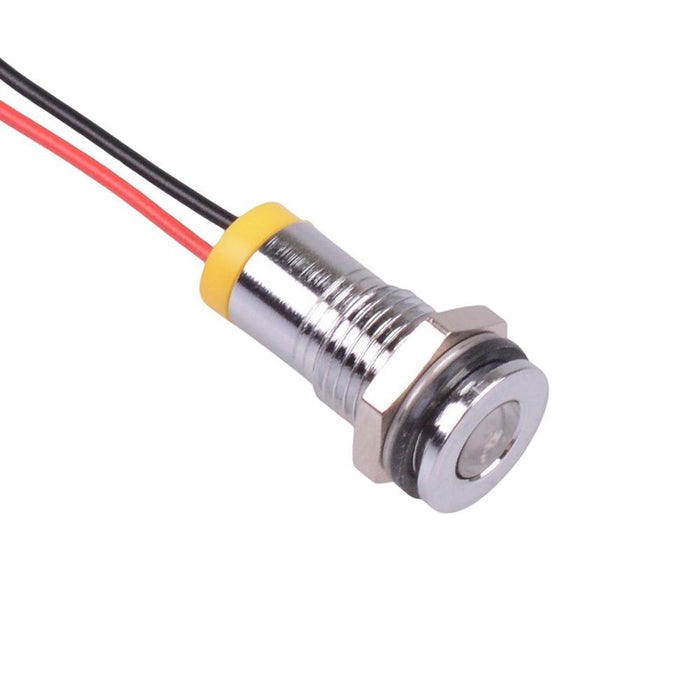

The Q8F7CXXSY02E is a super bright yellow panel mount LED indicator from the APEM Q8 series, featuring a 8mm cut-out and sealed to IP67. The indicator features a flush chrome bezel and 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: yellow Panel cut-out: 8mm Voltage rating: 2.1VDC Current rating: 20mA Panel thickness: 7mm max Brightness: 1120mcd Operating voltage: 1.8 to 3.3VDC Bezel material: chrome plated brass Protection level: IP67 Terminal type: 200mm wires Length: 17.6mm Diameter: 9.5mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Yellow |
| Diameter | 9.5mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 17.6mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 8mm |
| Panel Thickness | 7mm Max |
| Protection Level | IP67 |
| Voltage Rating | 2.1VDC |
