Q8F9CXXHY12E-X0237 Hyper Bright Yellow Flush 8mm 12VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492684
MPN: Q8F9CXXHY12E-X0237
Availability:
10 in stock
Original price
£6.71
-
Original price
£6.71
Original price
£6.71
£6.71
£6.71
-
£6.71
Current price
£6.71

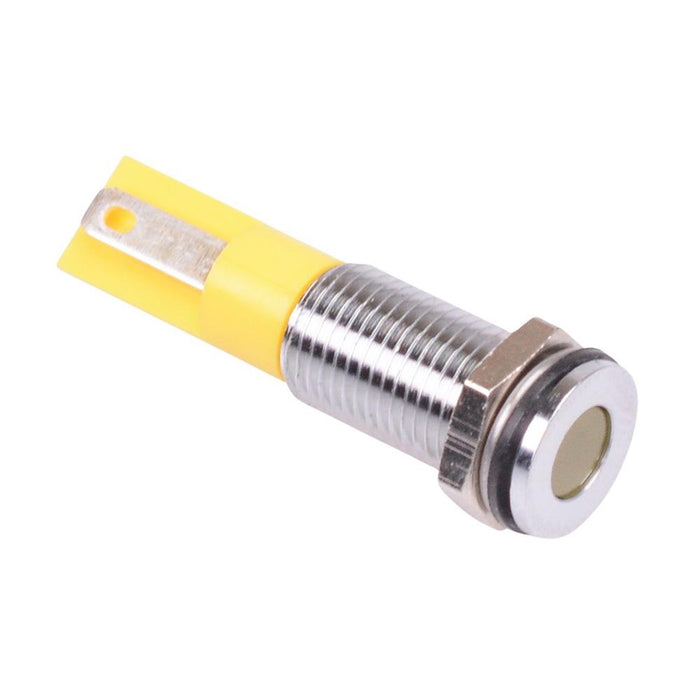

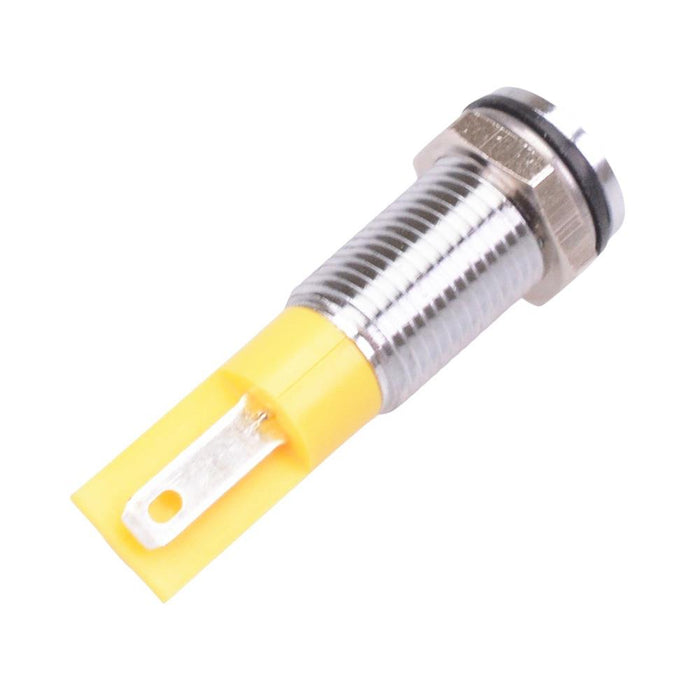

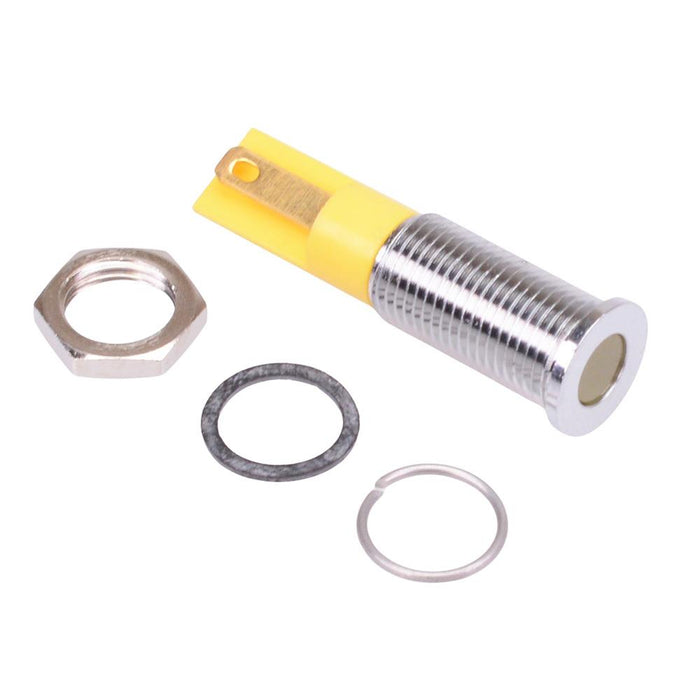

The Q8F9CXXHY12E-X0237 is a hyper bright yellow panel mount LED indicator from the APEM Q8 series, featuring a 8mm cut-out and sealed to IP67. The indicator features a flush chrome bezel and 2.8mm quick connect terminals. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: yellow Panel cut-out: 8mm Voltage rating: 12VDC Current rating: 20mA Panel thickness: 7mm max Brightness: 1560mcd Operating voltage: 10.8 to 13.2VDC Bezel material: chrome plated brass Protection level: IP67 Terminal type: quick connect / solder 2.8 x 0.8mm Length: 32mm Diameter: 9.4mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Yellow |
| Diameter | 9.4mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 32mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 8mm |
| Panel Thickness | 7mm Max |
| Protection Level | IP67 |
| Voltage Rating | 12VDC |
