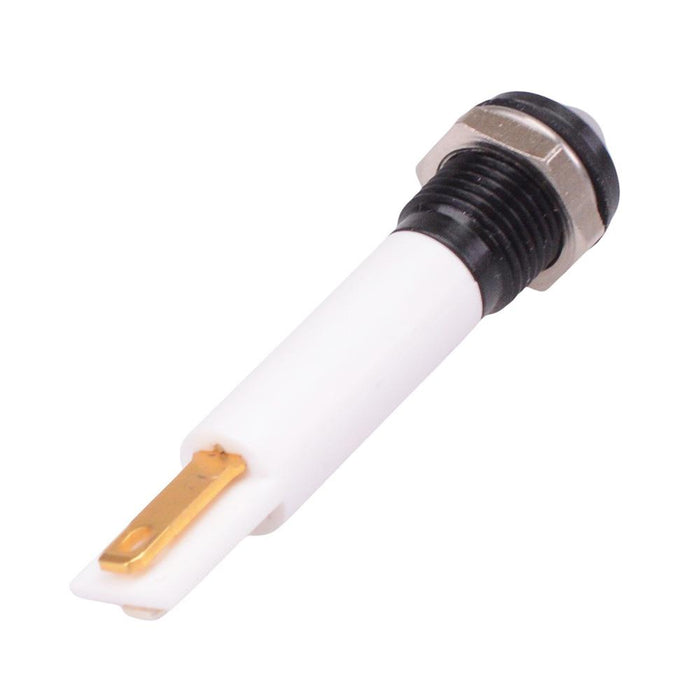

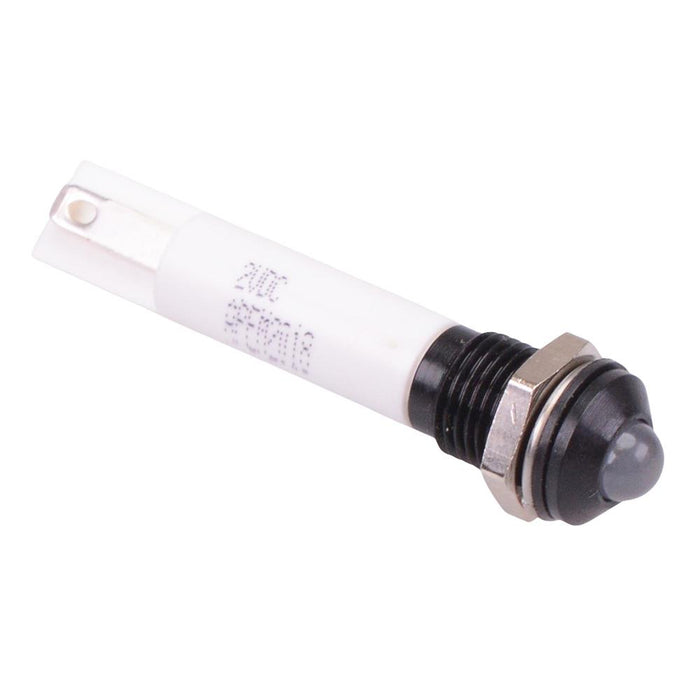

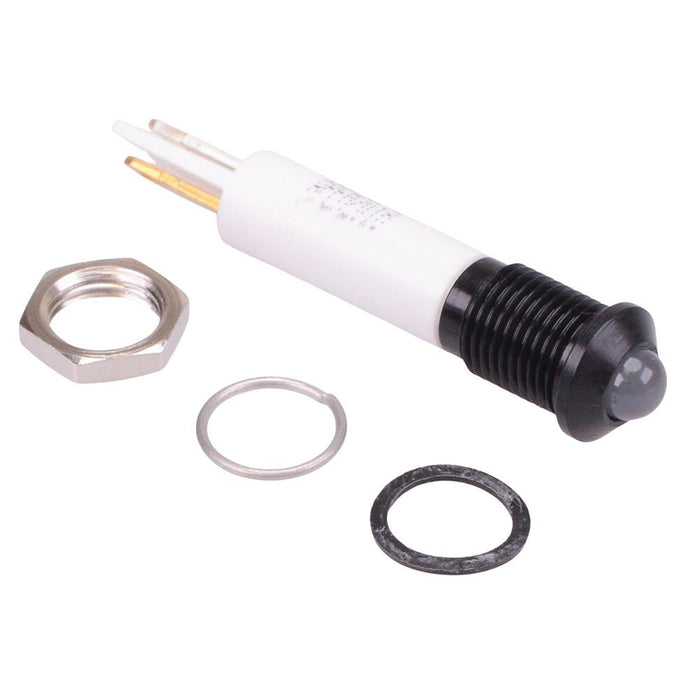

Q8P1BYYRG02E Red / Green Prominent 8mm LED Panel Indicator IP67 APEM
by APEM
SKU 492694
MPN: Q8P1BYYRG02E
Availability:
47 in stock
Original price
£6.84
-
Original price
£6.84
Original price
£6.84
£7.18
£7.18
-
£7.18
Current price
£7.18
The Q8P1BYYRG02E is a bi-colour red green panel mount LED indicator from the APEM Q8 series, featuring a 8mm cut-out and sealed to IP67. The indicator features a prominent black plated brass bezel and 2.8mm quick connect terminals. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: red / green Panel cut-out: 8mm Voltage rating: red 2.0VDC, green 2.2VDC Current rating: 20mA Panel thickness: 7mm max Brightness: red 14mcd, green 30mcd Operating voltage: 1.8 to 3.3VDC Bezel material: black plated brass Protection level: IP67 Terminal type: quick connect / solder 2.8 x 0.8mm Length: 33.85mm Diameter: 9.4mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red / Green |
| Diameter | 9.4mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 33.85mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 8mm |
| Panel Thickness | 7mm Max |
| Protection Level | IP67 |
