Q8P9GXXG28E Green Prominent 8mm 28VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492705
MPN: Q8P9GXXG28E
Availability:
51 in stock
Original price
£6.48
-
Original price
£6.48
Original price
£6.48
£6.80
£6.80
-
£6.80
Current price
£6.80

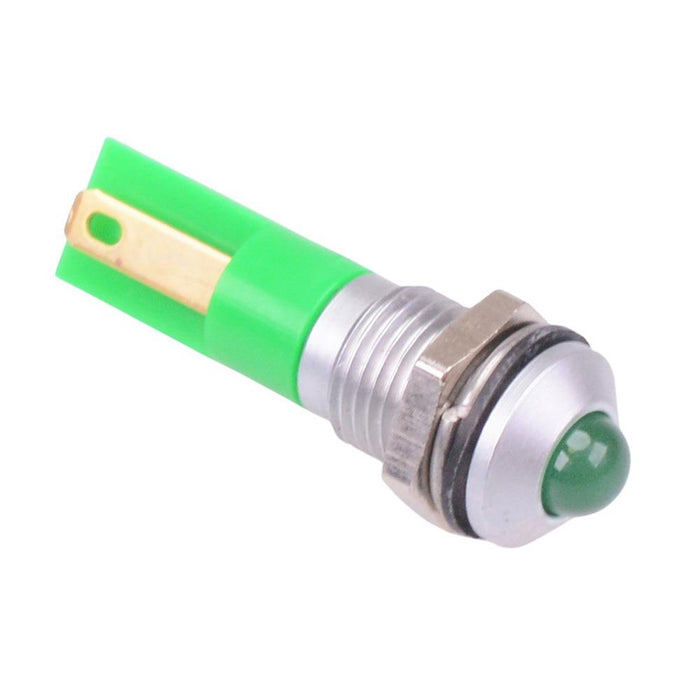

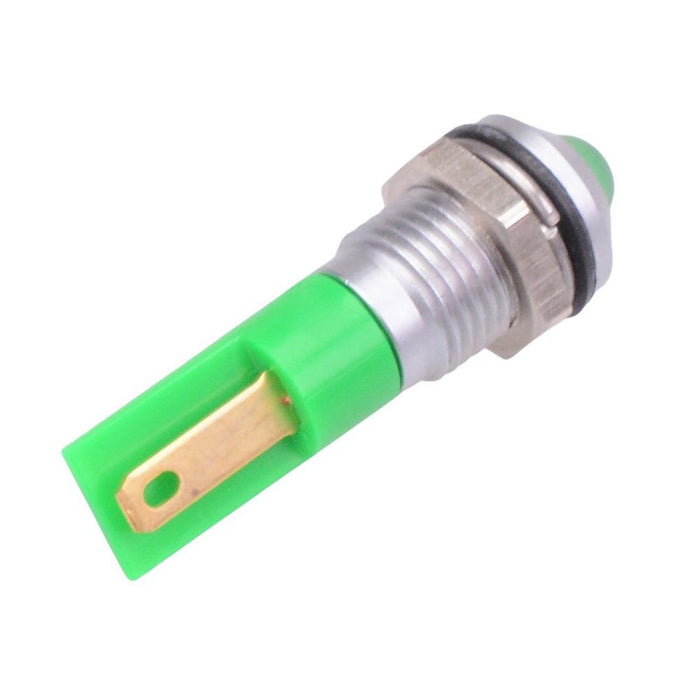

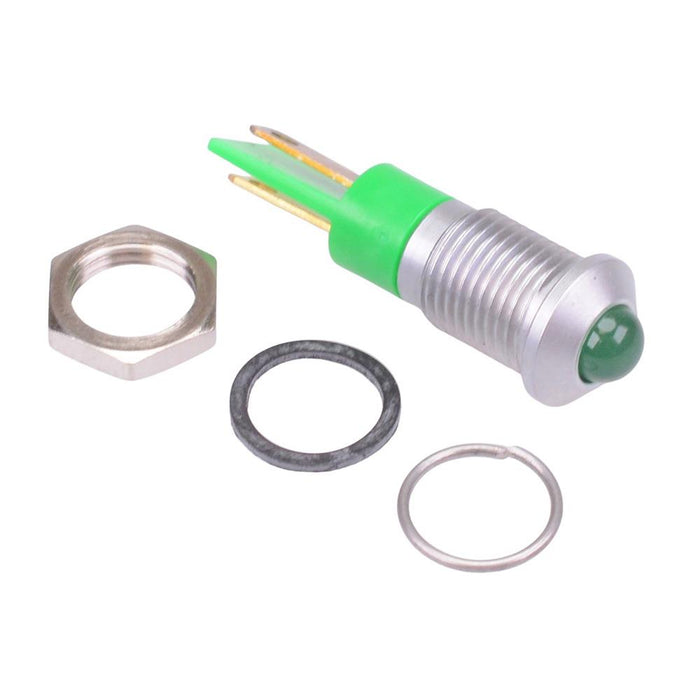

The Q8P9GXXG28E is a green panel mount LED indicator from the APEM Q8 series, featuring a 8mm cut-out and sealed to IP67. The indicator features a prominent satin grey anodized aluminium bezel and 2.8mm quick connect terminals. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: green Panel cut-out: 8mm Voltage rating: 28VDC Current rating: 20mA Panel thickness: 7mm max Brightness: 60mcd Operating voltage: 25.2 to 30.8VDC Bezel material: satin grey plated brass Protection level: IP67 Terminal type: quick connect / solder 2.8 x 0.8mm Length: 20.6mm Diameter: 9.4mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Green |
| Diameter | 9.4mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 20.6mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 8mm |
| Panel Thickness | 7mm Max |
| Protection Level | IP67 |
| Voltage Rating | 28VDC |
