Q8R1CXXG220 Green Recessed 8mm 220VAC LED Panel Indicator APEM
by APEM
SKU 492710
MPN: Q8R1CXXG220
Availability:
38 in stock
Original price
£5.94
-
Original price
£5.94
Original price
£5.94
£6.24
£6.24
-
£6.24
Current price
£6.24

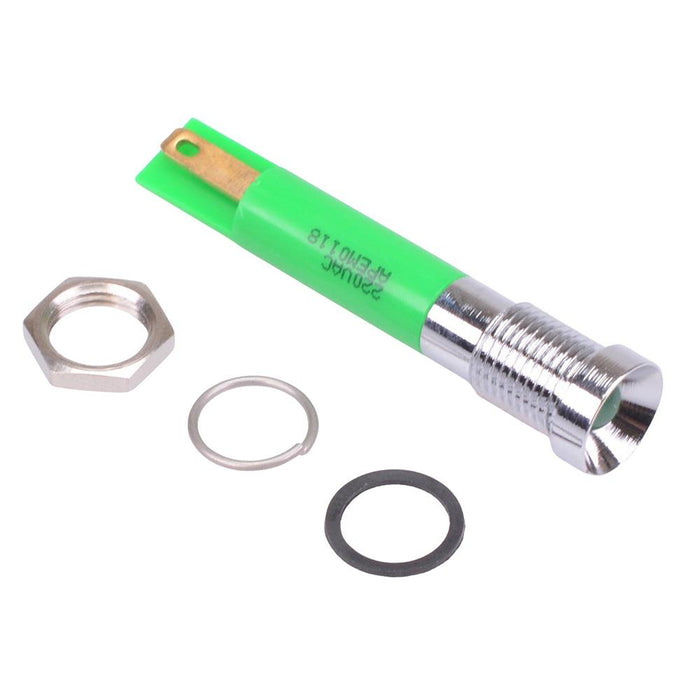

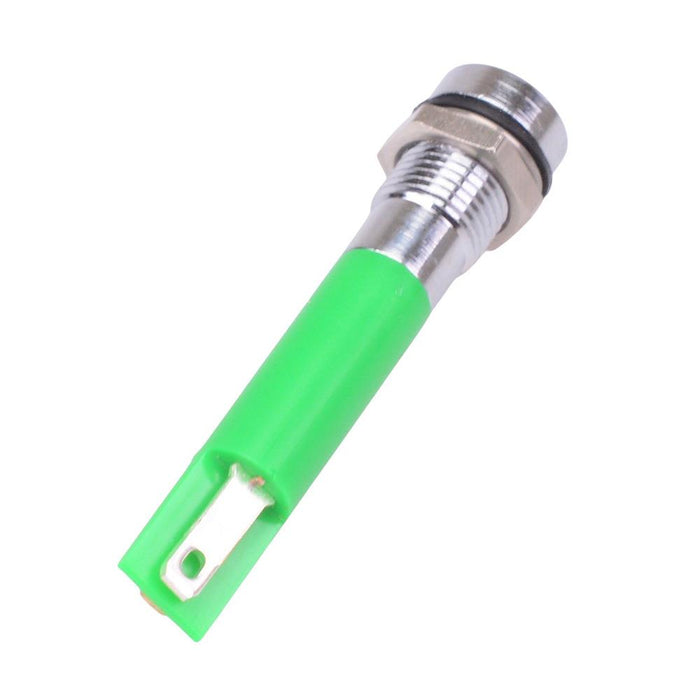

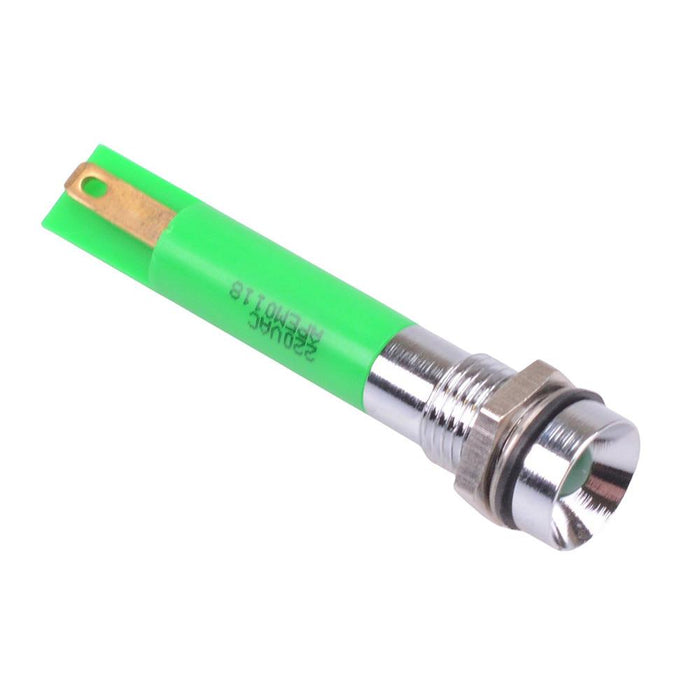

The Q8R1CXXG220 is a green panel mount LED indicator from the APEM Q8 series, featuring a 8mm cut-out. The indicator features a recessed chrome bezel and 2.8mm quick connect terminals. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: green Panel cut-out: 8mm Voltage rating: 220VAC Current rating: 3mA Panel thickness: 7mm max Brightness: 60mcd Operating voltage: 207 to 235VAC Bezel material: chrome plated brass Terminal type: quick connect / solder 2.8 x 0.8mm Length: 34.85mm Diameter: 9.4mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Green |
| Diameter | 9.4mm |
| Forward Current | 3mA |
| Lamp Type | LED |
| Length | 34.85mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 8mm |
| Panel Thickness | 7mm Max |
| Voltage Rating | 220VAC |
