Q8R5CXXHR06E Hyper Bright Red Recessed 8mm 6VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492720
MPN: Q8R5CXXHR06E
Availability:
100 in stock
Original price
£6.50
-
Original price
£6.50
Original price
£6.50
£6.50
£6.50
-
£6.50
Current price
£6.50

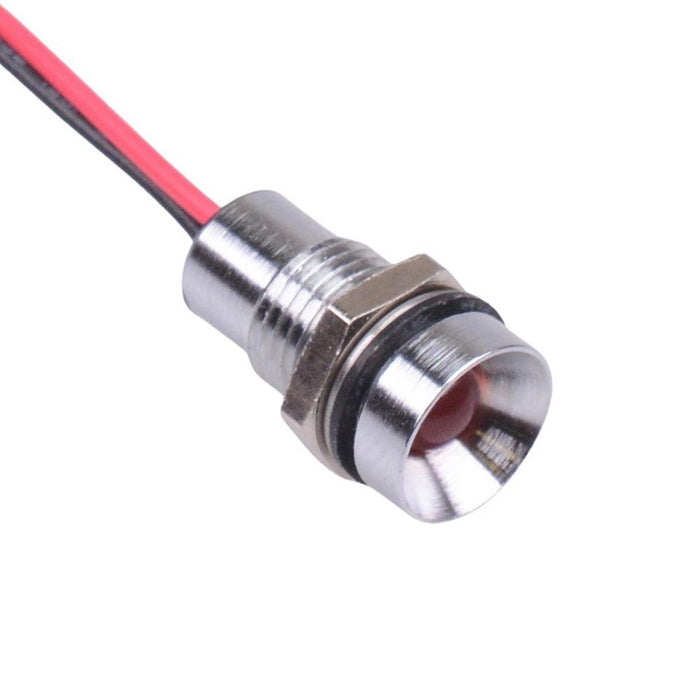

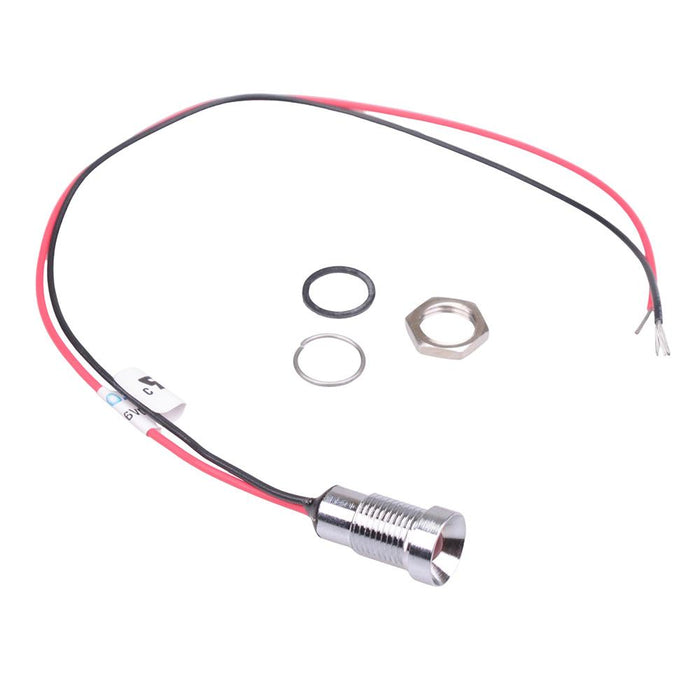

The Q8R5CXXHR06E is a hyper bright red panel mount LED indicator from the APEM Q8 series, featuring a 8mm cut-out and sealed to IP67. The indicator features a recessed chrome bezel and rear epoxy sealed 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: red Panel cut-out: 8mm Voltage rating: 6VDC Current rating: 20mA Panel thickness: 7mm max Brightness: 6000mcd Operating voltage: 5.4 to 6.6VDC Bezel material: chrome plated brass Protection level: IP67 Terminal type: rear epoxy 200mm wires Length: 16.5mm Diameter: 9.4mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Diameter | 9.4mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 16.5mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 8mm |
| Panel Thickness | 7mm Max |
| Protection Level | IP67 |
| Voltage Rating | 6VDC |
