QRM64BXXHR02E-X0800 Hyper Bright Red 6mm 2.2VDC LED Rear Mounting Panel Indicator IP67 APEM
by APEM
SKU 492734
MPN: QRM64BXXHR02E-X0800
Availability:
38 in stock
Original price
£12.98
-
Original price
£12.98
Original price
£12.98
£12.98
£12.98
-
£12.98
Current price
£12.98

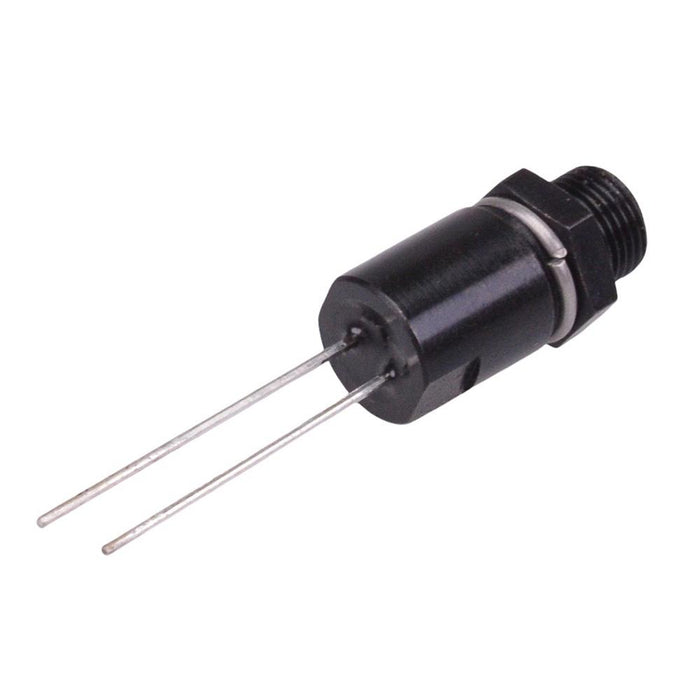

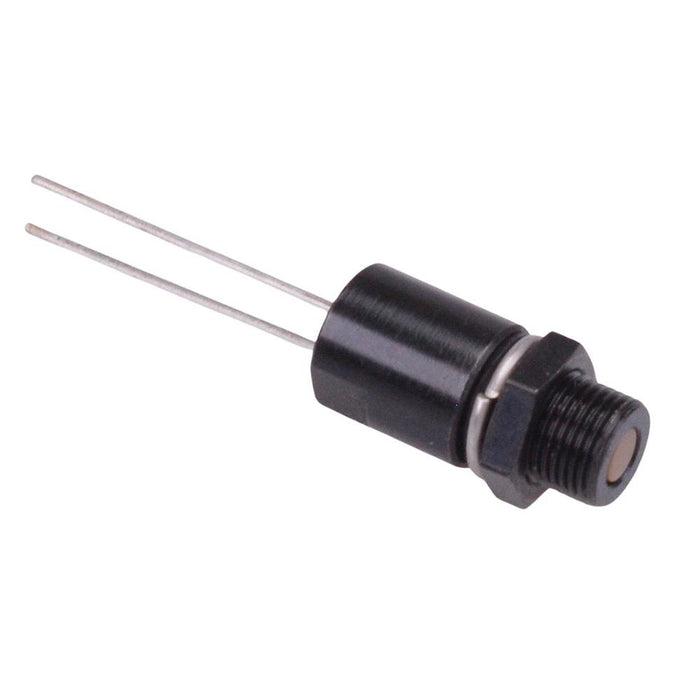

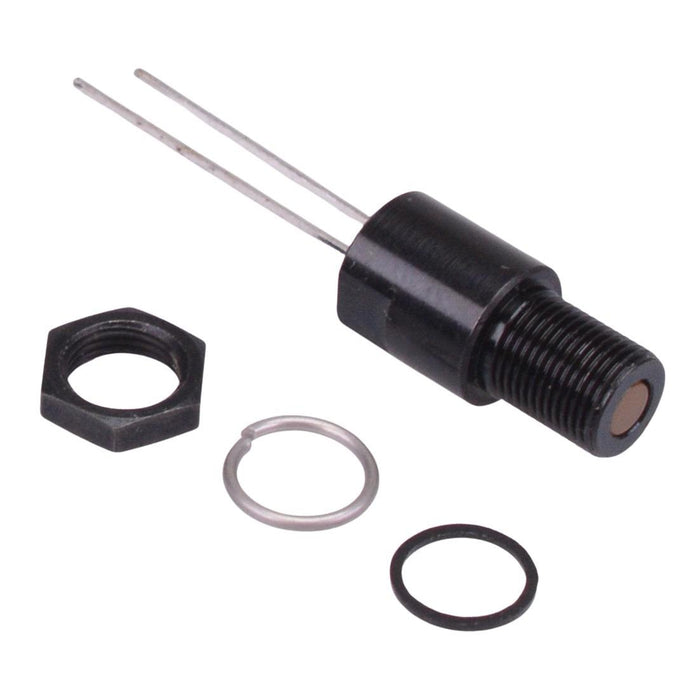

The QRM64BXXHR02E-X0800 is a hyper bright red rear panel mount LED indicator from the APEM QRM6 series, featuring a 6mm cut-out and sealed to IP67. The indicator features a flush black plated brass bezel and pin terminals. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: red Panel cut-out: 6mm Voltage rating: 2.2VDC Current rating: 20mA Panel thickness: 3.5mm max Brightness: 600mcd Operating voltage: 1.8 to 3.3VDC Bezel material: black plated brass Protection level: IP67 Terminal type: pins Length: 15.8mm Diameter: 7.9mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Diameter | 7.9mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 15.8mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6mm |
| Panel Thickness | 3.5mm Max |
| Protection Level | IP67 |
| Voltage Rating | 2.2VDC |
