QRM64BXXHR06E Hyper Bright Red 6mm 6VDC LED Rear Mounting Panel Indicator IP67 APEM
by APEM
SKU 492735
MPN: QRM64BXXHR06E
Availability:
50 in stock
Original price
£13.14
-
Original price
£13.14
Original price
£13.14
£13.14
£13.14
-
£13.14
Current price
£13.14

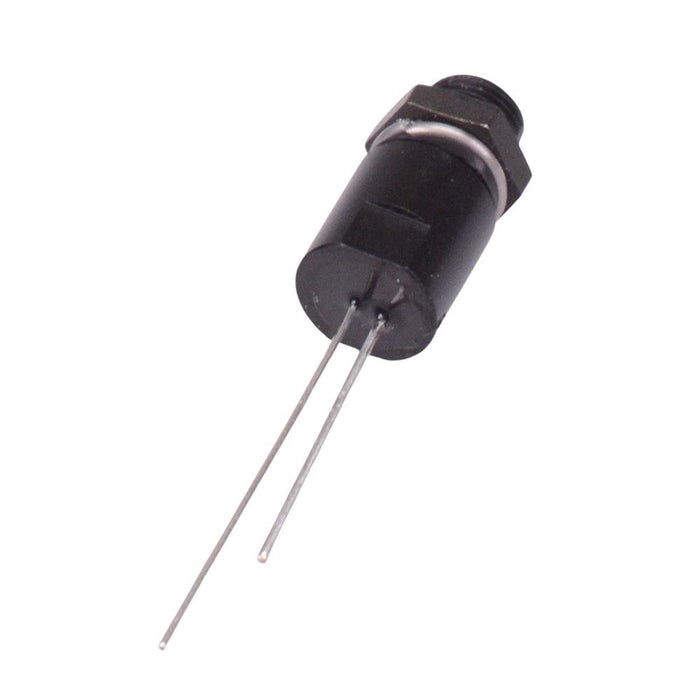

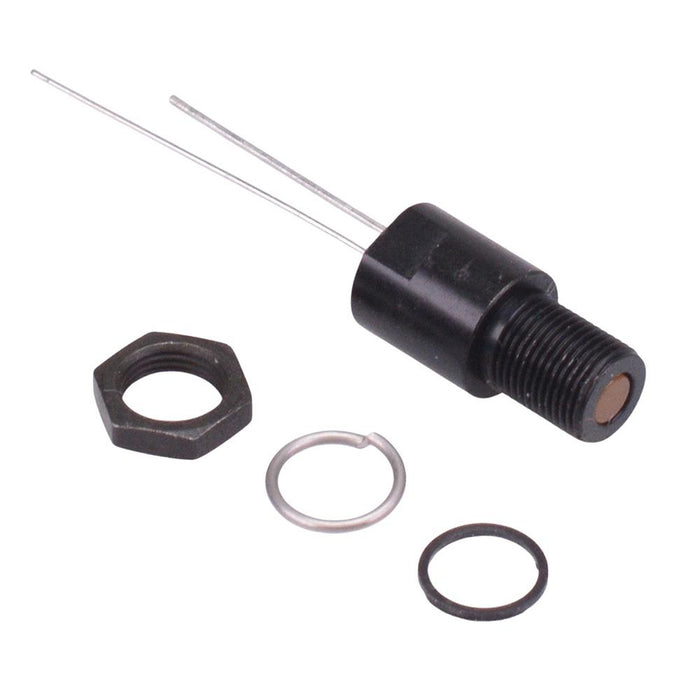

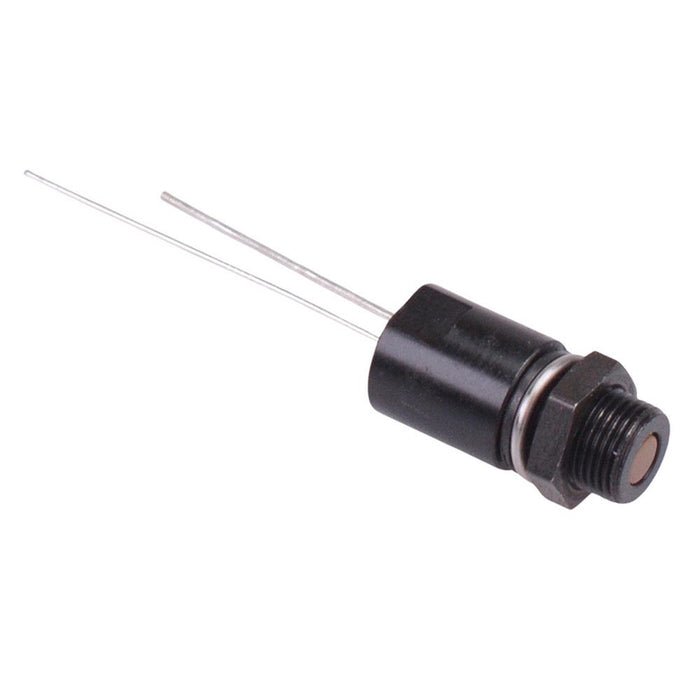

The QRM64BXXHR24E is a hyper bright red rear panel mount LED indicator from the APEM QRM6 series, featuring a 6mm cut-out and sealed to IP67. The indicator features a flush black plated brass bezel and pin terminals. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: red Panel cut-out: 6mm Voltage rating: 6VDC Current rating: 20mA Panel thickness: 3.5mm max Brightness: 600mcd Operating voltage: 5.4 to 6.6VDC Bezel material: black plated brass Protection level: IP67 Terminal type: pins Length: 15.8mm Diameter: 7.9mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Diameter | 7.9mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 15.8mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6mm |
| Panel Thickness | 3.5mm Max |
| Protection Level | IP67 |
| Voltage Rating | 6VDC |
