QRM85BXXHR02E-X0828 Hyper Bright Red 8mm 2.2VDC LED Rear Mounting Panel Indicator IP67 APEM
by APEM
SKU 492741
MPN: QRM85BXXHR02E-X0828
Availability:
9 in stock
Original price
£17.76
-
Original price
£17.76
Original price
£17.76
£17.76
£17.76
-
£17.76
Current price
£17.76

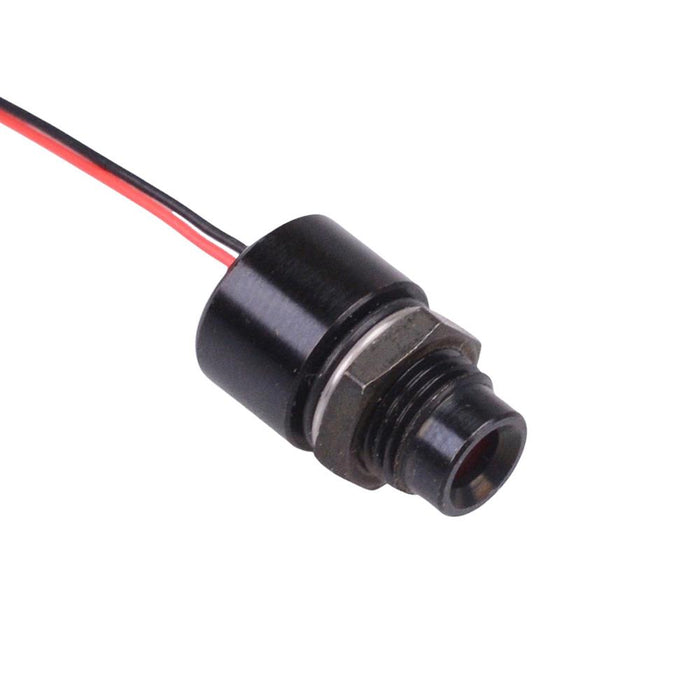

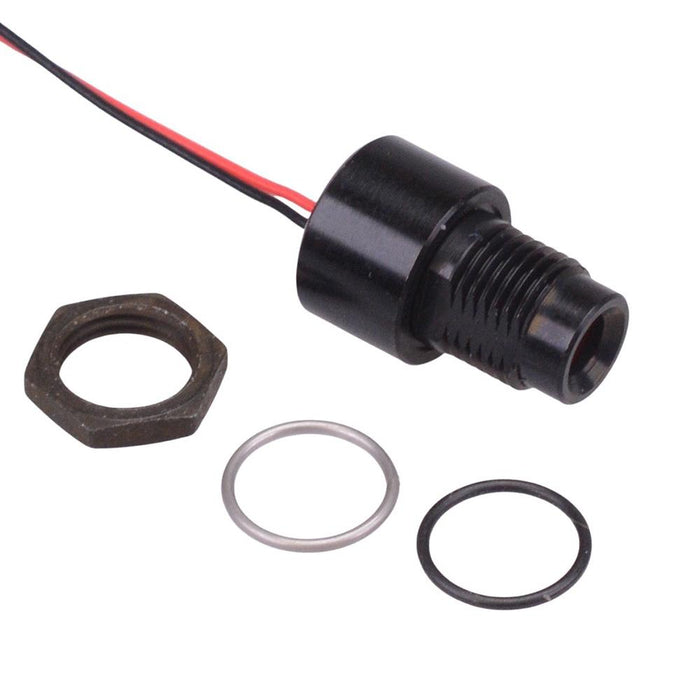

The QRM85BXXHR02E-X0828 is a hyper bright red rear panel mount LED indicator from the APEM QRM8 series, featuring a 8mm cut-out and sealed to IP67. The indicator features a recessed black plated brass bezel and 1250mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: red Panel cut-out: 8mm Voltage rating: 2.2VDC Current rating: 20mA Panel thickness: 3.5mm max Brightness: 980mcd Operating voltage: 1.8 to 3.3VDC Bezel material: black plated brass Protection level: IP67 Terminal type: 1250mm wires Length: 16.3mm Diameter: 11mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Diameter | 11mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 16.3mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 8mm |
| Panel Thickness | 3.5mm Max |
| Protection Level | IP67 |
| Voltage Rating | 2.2VDC |
