QS101XXHB110 Hyper Bright Blue 10mm 110VAC Snap-In Panel Indicator APEM
by APEM
SKU 492742
MPN: QS101XXHB110
Availability:
77 in stock
Original price
£5.54
-
Original price
£5.54
Original price
£5.54
£5.54
£5.54
-
£5.54
Current price
£5.54

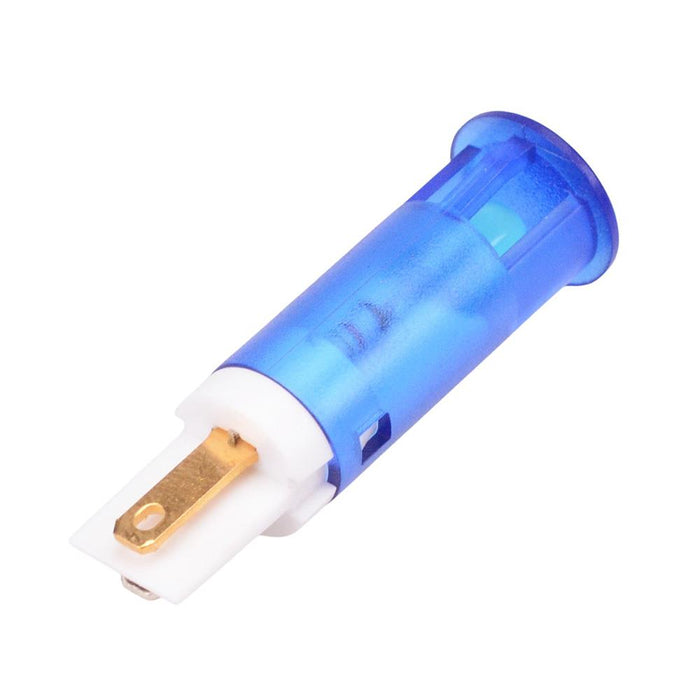

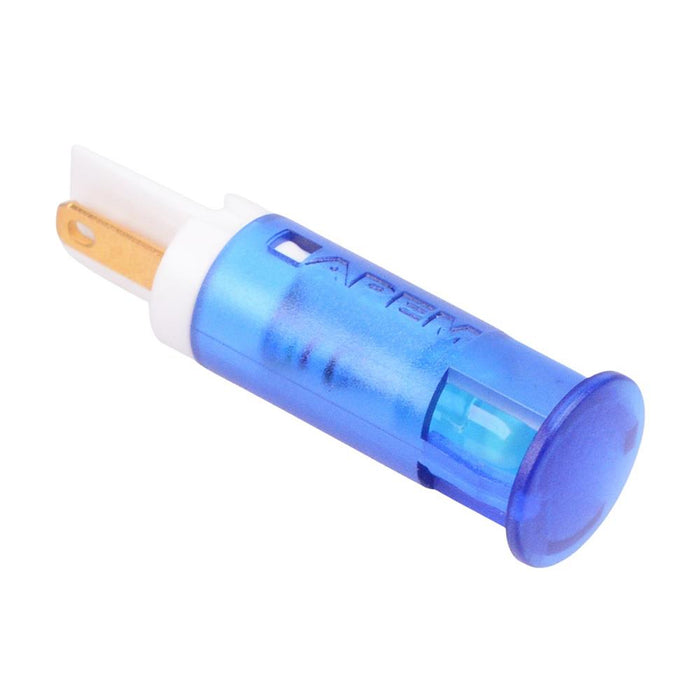

The QS101XXHB110 is a hyper bright blue snap-in panel mount LED indicator from the APEM QS series, featuring a 10mm cut-out and moulded body. The indicator features a low profile bezel and 2.8mm quick connect terminals.
Colour: blue Panel cut-out: 10mm Voltage rating: 110VAC Current rating: 6mA Panel thickness: 0.8 to 1.6mm Operating voltage: 99 to 121VAC Bezel material: polycarbonate Terminal type: quick connect / solder 2.8 x 0.8mm Length: 38.25mm Diameter: 12mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Blue |
| Diameter | 12mm |
| Forward Current | 6mA |
| Lamp Type | LED |
| Length | 38.25mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 10mm |
| Panel Thickness | 0.8 to 1.6mm |
| Voltage Rating | 110VAC |
