QS123XXY12 Yellow 12mm 12VDC Snap-In Prewired Panel Indicator APEM
by APEM
SKU 492747
MPN: QS123XXY12
Availability:
25 in stock
Original price
£5.76
-
Original price
£5.76
Original price
£5.76
£6.05
£6.05
-
£6.05
Current price
£6.05

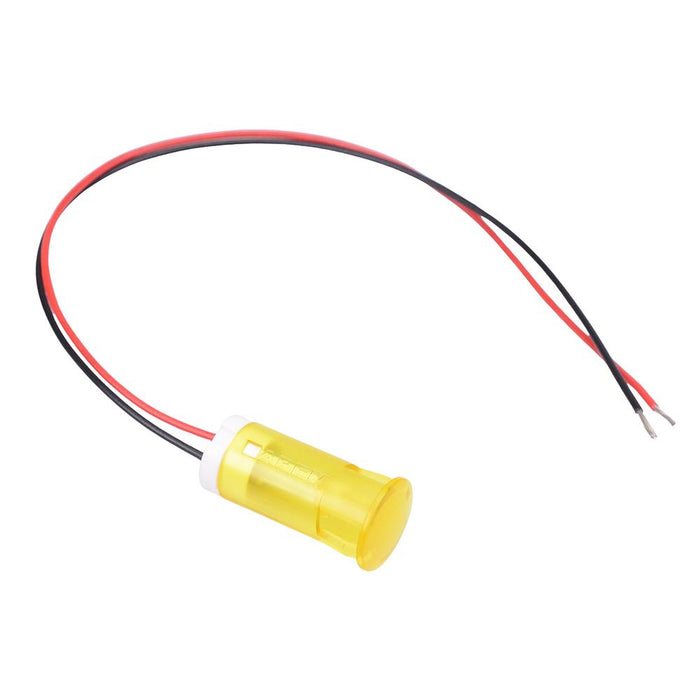

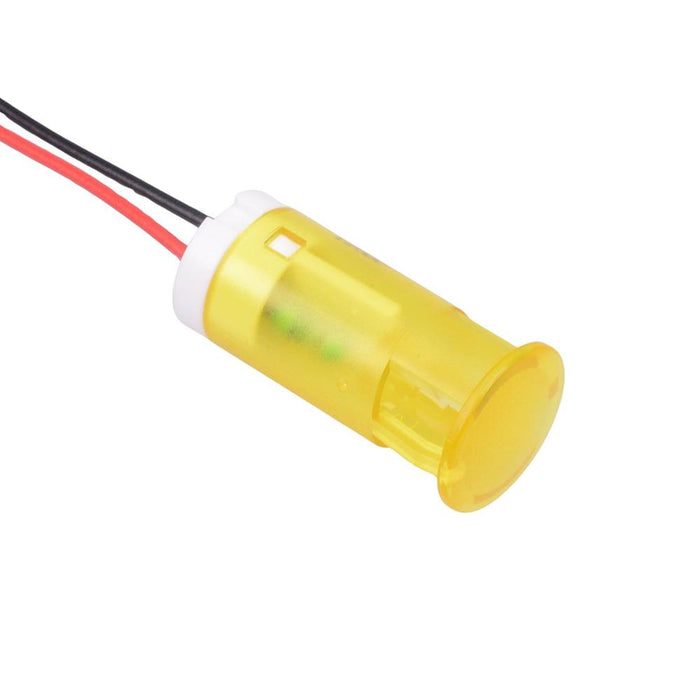

The QS123XXY12 is a yellow snap-in panel mount LED indicator from the APEM QS series, featuring a 12mm cut-out and moulded body. The indicator features a low profile bezel and 200mm tail wires.
Colour: yellow Panel cut-out: 12mm Voltage rating: 12VDC Current rating: 20mA Panel thickness: 0.8 to 1.6mm Brightness: 2100mcd Operating voltage: 10.8 to 13.2VDC Bezel material: polycarbonate Terminal type: 200mm wires Length: 28.5mm Diameter: 14mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Yellow |
| Diameter | 14mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 28.5mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 12mm |
| Panel Thickness | 0.8 to 1.6mm |
| Voltage Rating | 12VDC |
