QS81KKR24 Flashing Red 8mm 24VDC Snap-In Panel Indicator APEM
by APEM
SKU 492749
MPN: QS81KKR24
Availability:
86 in stock
Original price
£6.14
-
Original price
£6.14
Original price
£6.14
£6.14
£6.14
-
£6.14
Current price
£6.14

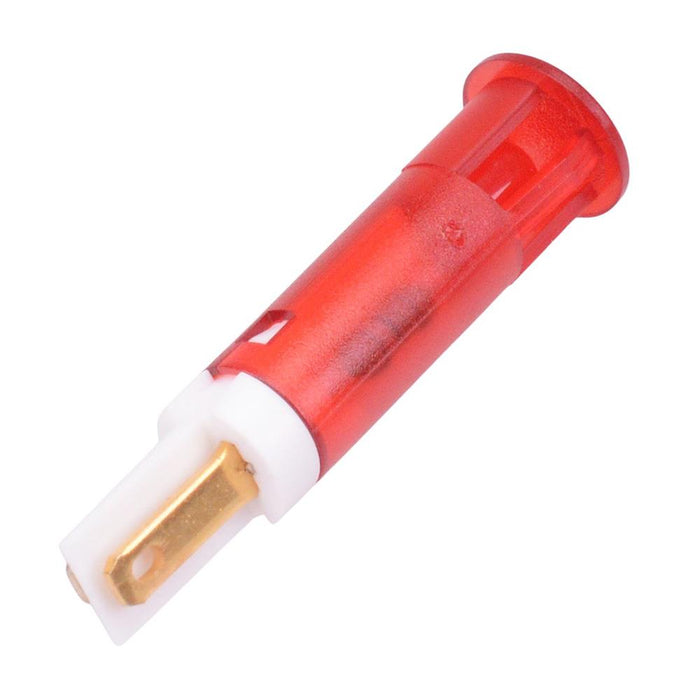

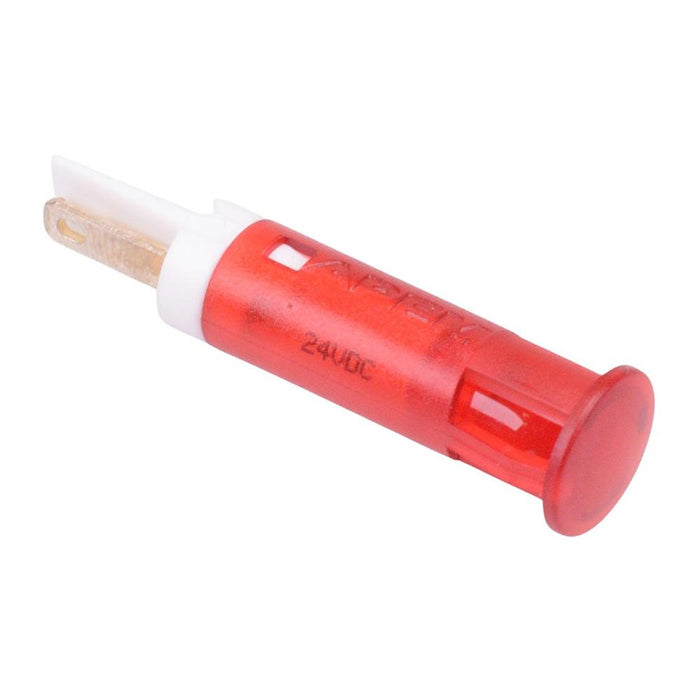

The QS81KKR24 is a flashing red snap-in panel mount LED indicator from the APEM QS series, featuring a 8mm cut-out and moulded body. The indicator features a low profile bezel and 2.8mm quick connect terminals.
Colour: red Panel cut-out: 8mm Voltage rating: 24VDC Current rating: 20mA Panel thickness: 0.8 to 1.6mm Brightness: 100mcd Operating voltage: 21.6 to 26.4VDC Bezel material: polycarbonate Terminal type: quick connect / solder 2.8 x 0.8mm Length: 38mm Diameter: 10mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Diameter | 10mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 38mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 8mm |
| Panel Thickness | 0.8 to 1.6mm |
| Voltage Rating | 24VDC |
