QS81XXHW110 Hyper Bright White 8mm 110VAC Snap-In Panel Indicator APEM
by APEM
SKU 492750
MPN: QS81XXHW110
Availability:
283 in stock
Original price
£5.64
-
Original price
£5.64
Original price
£5.64
£5.64
£5.64
-
£5.64
Current price
£5.64

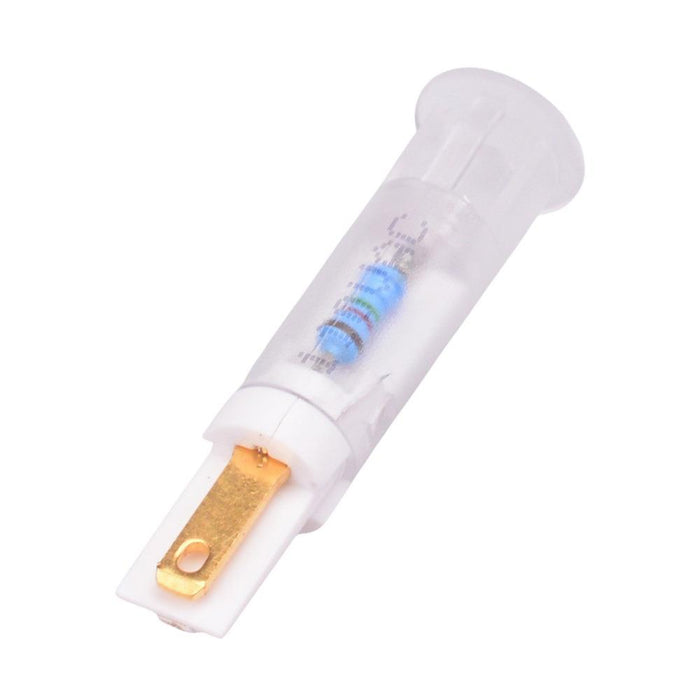

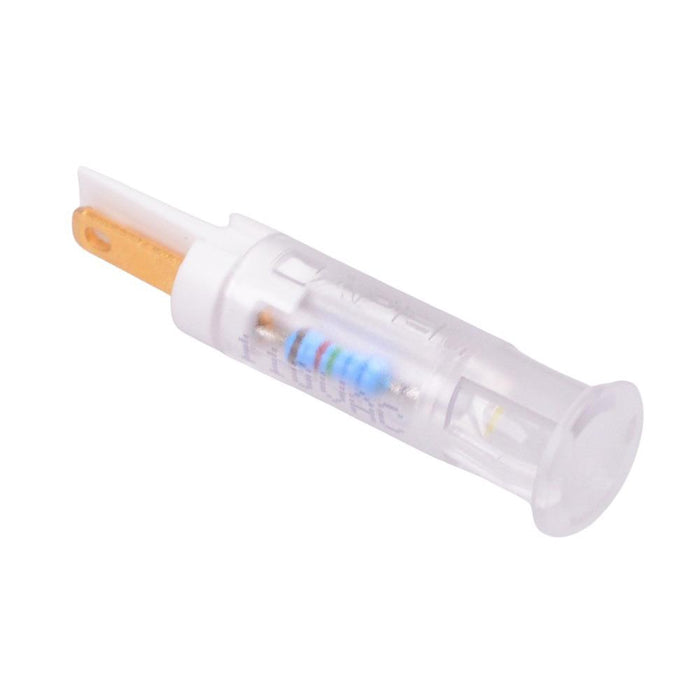

The QS81XXHW110 is a hyper bright white snap-in panel mount LED indicator from the APEM QS series, featuring a 8mm cut-out and moulded body. The indicator features a low profile bezel and 2.8mm quick connect terminals.
Colour: white Panel cut-out: 8mm Voltage rating: 110VAC Current rating: 6mA Panel thickness: 0.8 to 1.6mm Operating voltage: 99 to 121VAC Bezel material: polycarbonate Terminal type: quick connect / solder 2.8 x 0.8mm Length: 38mm Diameter: 10mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | White |
| Diameter | 10mm |
| Forward Current | 6mA |
| Lamp Type | LED |
| Length | 38mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 8mm |
| Panel Thickness | 0.8 to 1.6mm |
| Voltage Rating | 110VAC |
