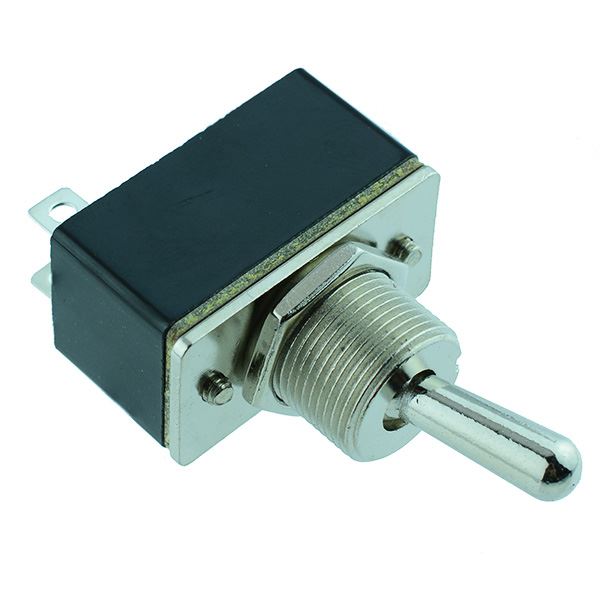

R13-2-05 On-Off Standard Toggle Switch SPST
by SCI
SKU 480155
MPN: R13-2-05-H
Availability:
34 in stock
Original price
£0.69
-
Original price
£0.69
Original price
£0.69
£0.69
-
£0.69
Current price
£0.69
R13-2-05 standard On-Off toggle switch featuring SPST contacts and reliable mechanism, suitable for low power applications.
Rating: 1.5A 250VAC
Panel cut-out: 12mm
Solder contacts
Size: 25.2 x 41.9 x 14mm (Length x Height x Width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPST |
| Contact Rating | 1.5A 250VAC |
| Current Rating | 1.5A |
| Illuminated | No |
| Material | Black PF |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 12mm |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
