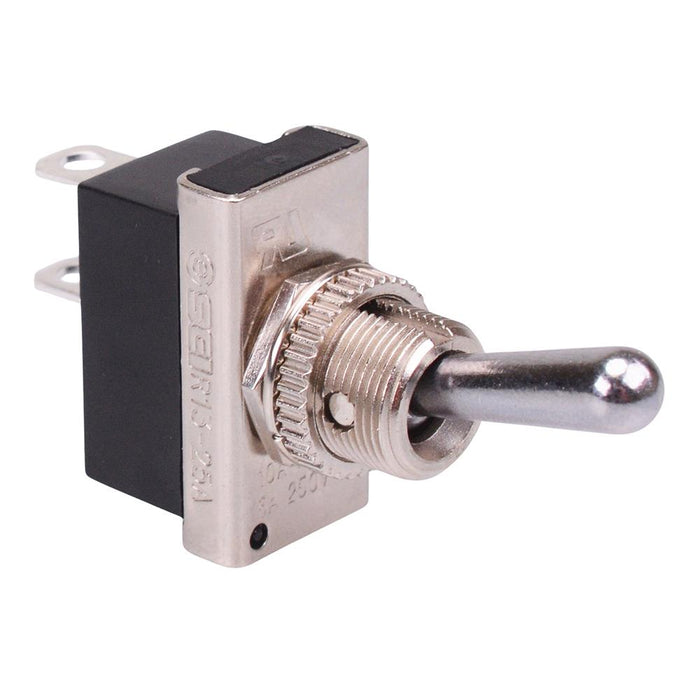

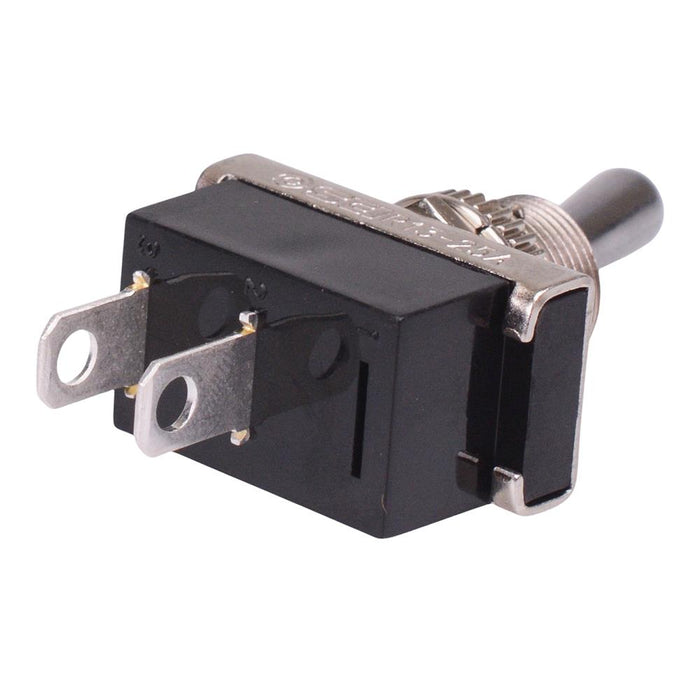

R13-25A2-01 On-Off 12mm Toggle Switch 6A 250VAC
by SCI
SKU 491600
MPN: R13-25A2-01
Availability:
24 in stock
Original price
£2.18
-
Original price
£2.18
Original price
£2.18
£2.18
£2.18
-
£2.18
Current price
£2.18
The R13-25A2-01 toggle switch are On-Off function and SPST contacts, featuring quick connect terminals and requires a 12.2mm diameter mounting hole. The switch features 6A 250VAC rating, suitable for a wide range of switching applications.
Function: On-Off Contacts: SPST Panel cut-out: 12.2mm Rating: 10A 125VAC, 6A 250VAC Maximum panel thickness: 6mm Termination: 6.3mm quick connect M12*0.75mm thread SCI R13-25 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Contact Configuration | SPST |
| Contact Rating | 10A 125VAC, 6A 250VAC |
| Current Rating | 10A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Panel Cut Out | 12.2mm |
| Panel Thickness | 6mm Max |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
