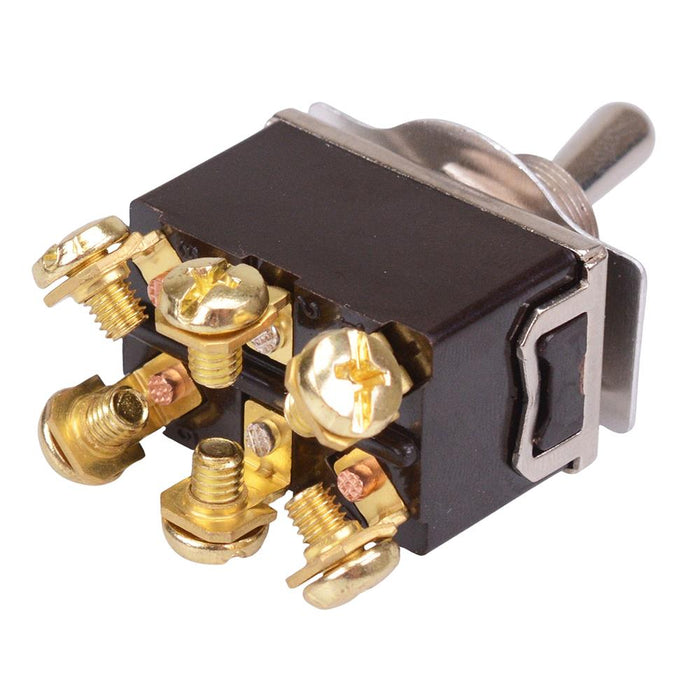

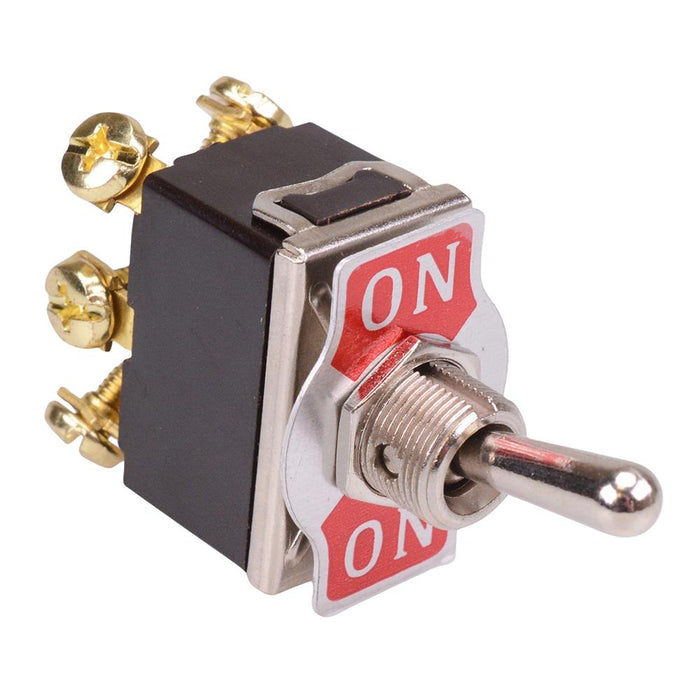

R13-29B-07 On-On 12mm Toggle Switch M4 Screw DPDT 10A 250VAC
by SCI
SKU 491606
MPN: R13-29B-07
Availability:
20 in stock
Original price
£3.94
-
Original price
£3.94
Original price
£3.94
£3.94
£3.94
-
£3.94
Current price
£3.94
The R13-29B-07 toggle switch are On-On function and DPDT contacts, featuring screw terminals and requires a 12.2mm diameter mounting hole. The switch features 10A 250VAC rating, suitable for a wide range of switching applications.
Function: On-On Contacts: DPDT Panel cut-out: 12.2mm Rating: 15A 125VAC, 10A 250VAC Maximum panel thickness: 6mm Termination: M4 screw M12*0.75mm thread SCI R13-29 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Contact Configuration | DPDT |
| Contact Rating | 15A 125VAC, 10A 250VAC |
| Current Rating | 15A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +70°C |
| Panel Cut Out | 12.2mm |
| Panel Thickness | 6mm Max |
| Switch Operation | On-On |
| Terminal Type | Screw |
| Voltage Rating | 250VAC |
