R13-401A2A-07 Paddle On-Off 12mm Toggle Switch SPST 50A 12VDC
by SCI
SKU 491612
MPN: R13-401A2A-07
Availability:
20 in stock
Original price
£4.26
-
Original price
£4.26
Original price
£4.26
£4.26
£4.26
-
£4.26
Current price
£4.26

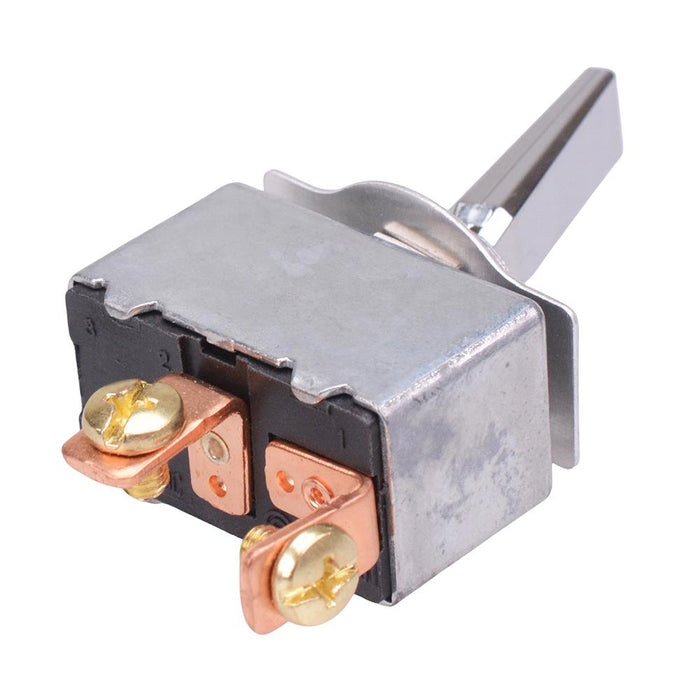

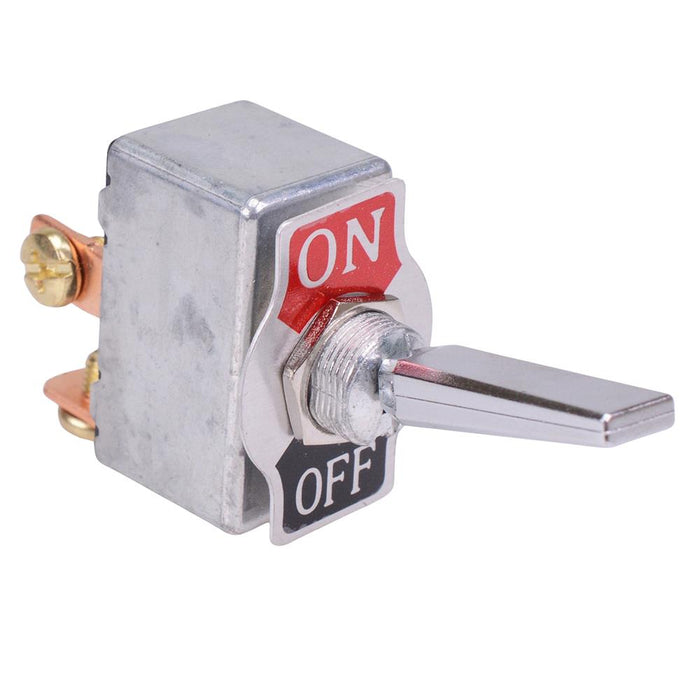

The R13-401A2A-07 is a metal toggle switch with On-Off function and SPST contacts, featuring M4 screw terminals and 50A current rating. The switch requires a 12.2mm panel cut-out, and is suitable for a wide range of DC applications including automotive.
Function: On-Off Contacts: SPST Panel cut-out: 12.2mm Rating: 50A 12VDC Maximum panel thickness: 3mm Termination: M4 screw M12*0.75mm thread SCI R13-401 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Contact Configuration | SPST |
| Contact Rating | 50A 12VDC |
| Current Rating | 50A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 12.2mm |
| Panel Thickness | 3mm Max |
| Switch Operation | On-Off |
| Terminal Type | Screw |
| Voltage Rating | 12VDC |
