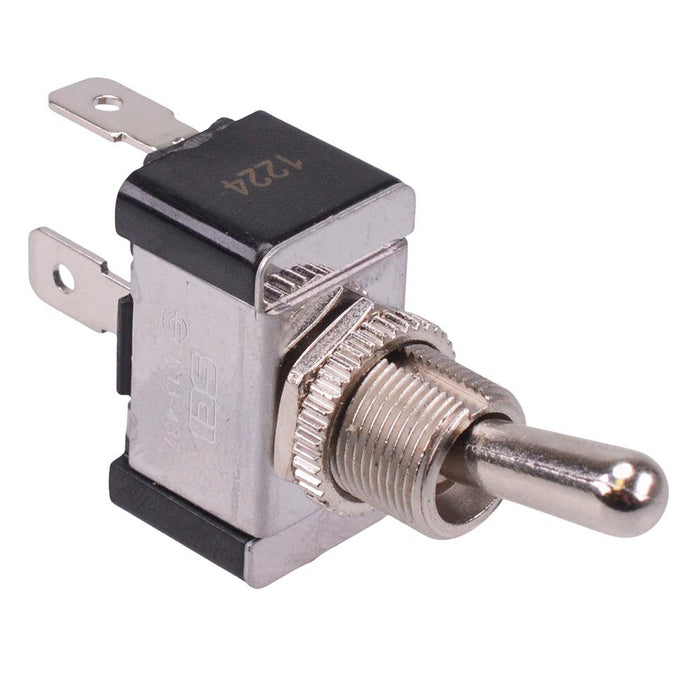

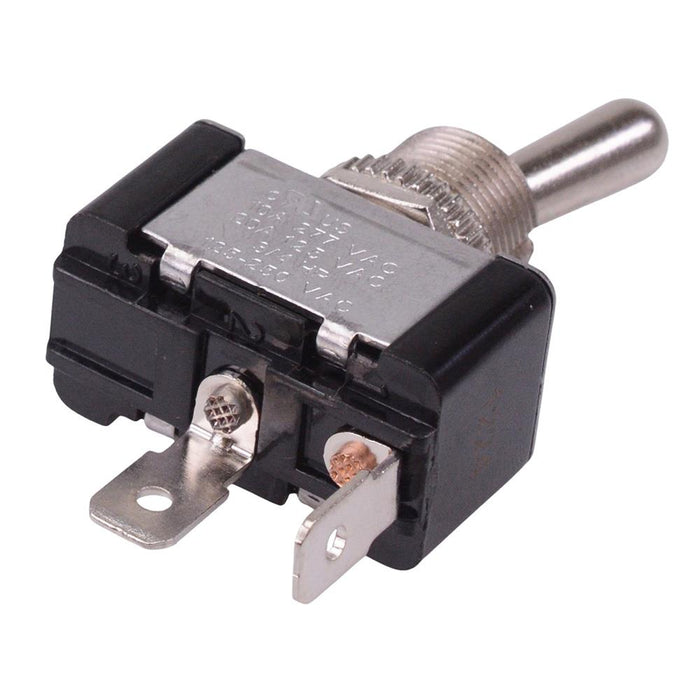

R13-437A1-01B-HR On-Off 12mm Toggle Switch SPST 10A 250VAC
by SCI
SKU 491613
MPN: R13-437A1-01B-HR
Availability:
20 in stock
Original price
£2.90
-
Original price
£2.90
Original price
£2.90
£3.05
£3.05
-
£3.05
Current price
£3.05
The R13-437A1-01B-HR is a toggle switch with On-Off function and SPST contacts, featuring quick connect terminals and 10A current rating. The switch requires a 12.2mm panel cut-out, and is suitable for a wide range of DC applications including automotive.
Function: On-Off Contacts: SPST Panel cut-out: 12.2mm Rating: 20A 125VAC, 10A 277VAC Maximum panel thickness: 4mm Termination: 6.3mm quick connect 15/32-32 thread Dimensions: 57 x 28.6 x 16mm (height x length x width) SCI R13-437 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Contact Configuration | SPST |
| Contact Rating | 20A 125VAC, 10A 250VAC |
| Current Rating | 20A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | 0°C to +65°C |
| Panel Cut Out | 12.2mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
