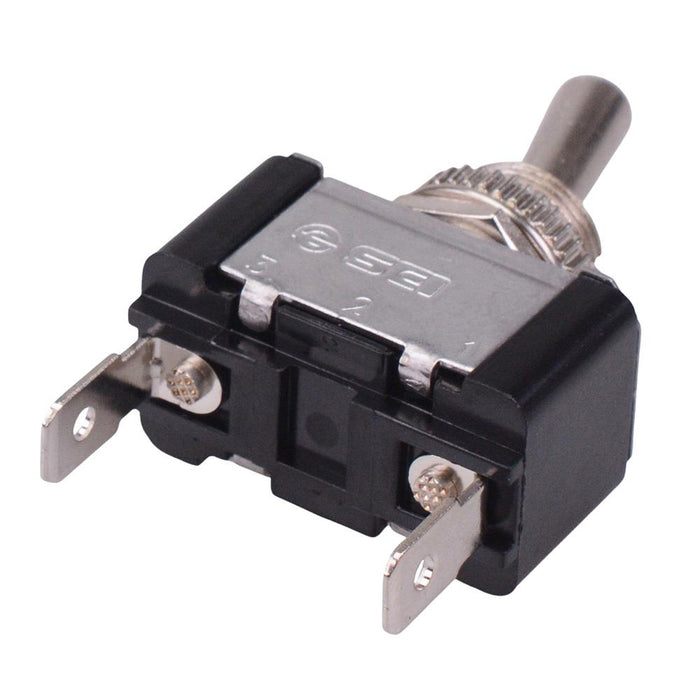

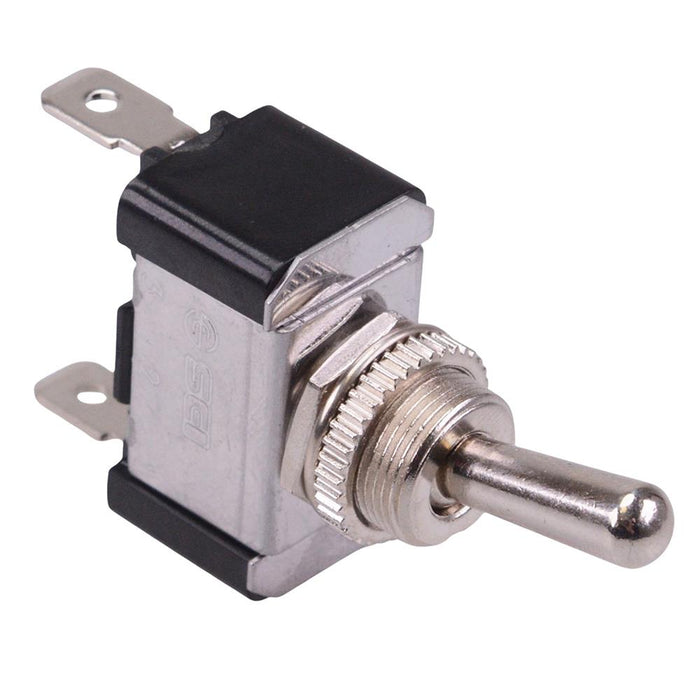

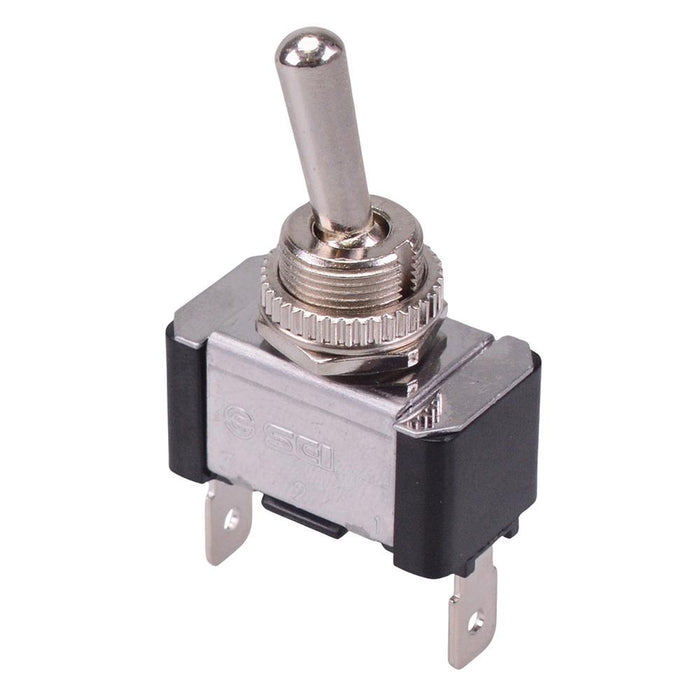

R13-5-01-HWR On-Off 12mm Toggle Switch SPST 20A 12VDC
by SCI
SKU 491615
MPN: R13-5-01-HWR
Availability:
Only 4 left!
Original price
£2.04
-
Original price
£2.04
Original price
£2.04
£2.14
£2.14
-
£2.14
Current price
£2.14
The R13-5-01-HWR is a toggle switch with On-Off function and SPST contacts, featuring quick connect terminals and 20A current rating. The switch requires a 12.2mm panel cut-out, and is suitable for a wide range of DC applications including automotive.
Function: On-Off Contacts: SPST Panel cut-out: 12.2mm Rating: 20A 12VDC, 10A 24VDC Maximum panel thickness: 4mm Termination: 6.3mm quick connect M12*0.75mm thread SCI R13 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Contact Configuration | SPST |
| Contact Rating | 20A 12VDC, 10A 24VDC |
| Current Rating | 20A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | 0°C to +65°C |
| Panel Cut Out | 12.2mm |
| Panel Thickness | 4mm Max |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
