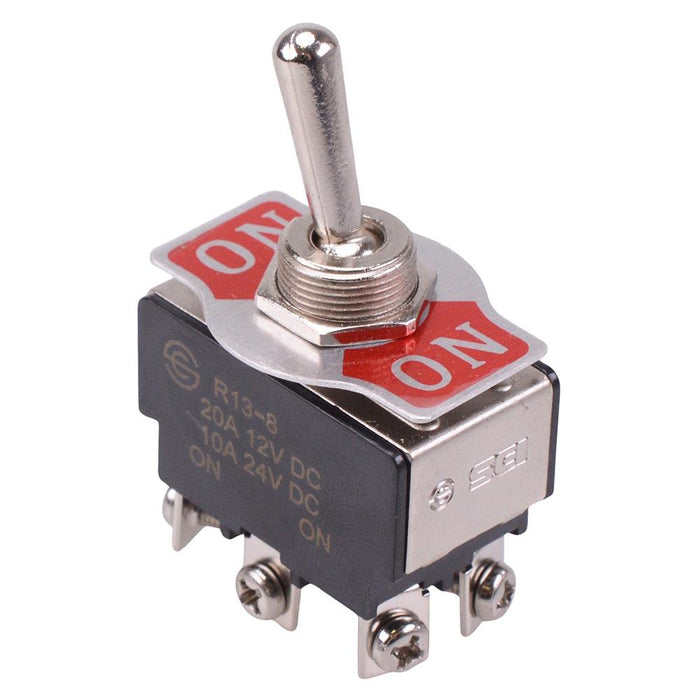

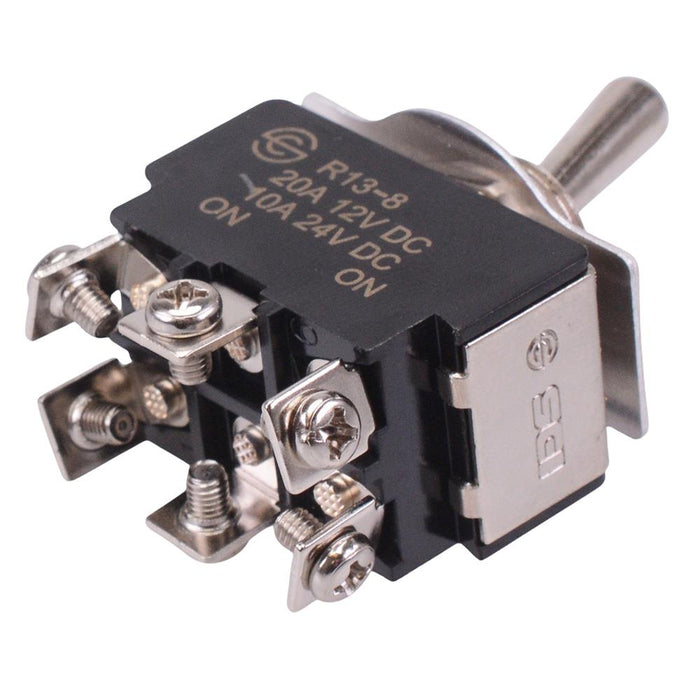

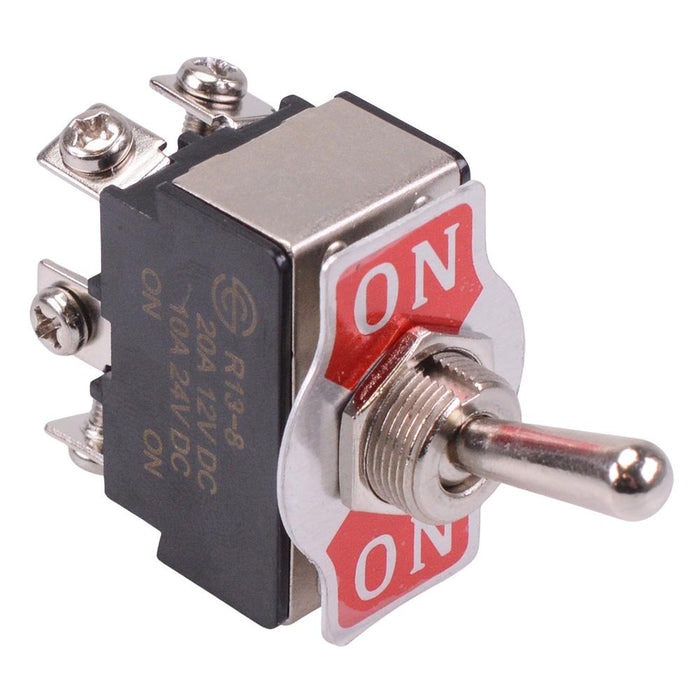

R13-8B-06 On-On 12mm Toggle Switch M3 Screw DPDT 20A 12VDC
by SCI
SKU 491618
MPN: R13-8B-06
Availability:
14 in stock
Original price
£2.35
-
Original price
£2.35
Original price
£2.35
£2.47
£2.47
-
£2.47
Current price
£2.47
The R13-8B-06 toggle switch are On-On function and DPDT contacts, featuring M3 screw terminals and requires a 12.2mm diameter mounting hole. The switch features 20A 12VDC rating, suitable for a wide range of DC applications including automotive.
Function: On-On Contacts: DPDT Panel cut-out: 12.2mm Rating: 20A 12VDC Maximum panel thickness: 6mm Termination: M3 screw M12*0.75mm thread SCI R13-8 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Contact Configuration | DPDT |
| Contact Rating | 20A 12VDC |
| Current Rating | 20A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Panel Cut Out | 12.2mm |
| Panel Thickness | 4mm Max |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 12VDC |
