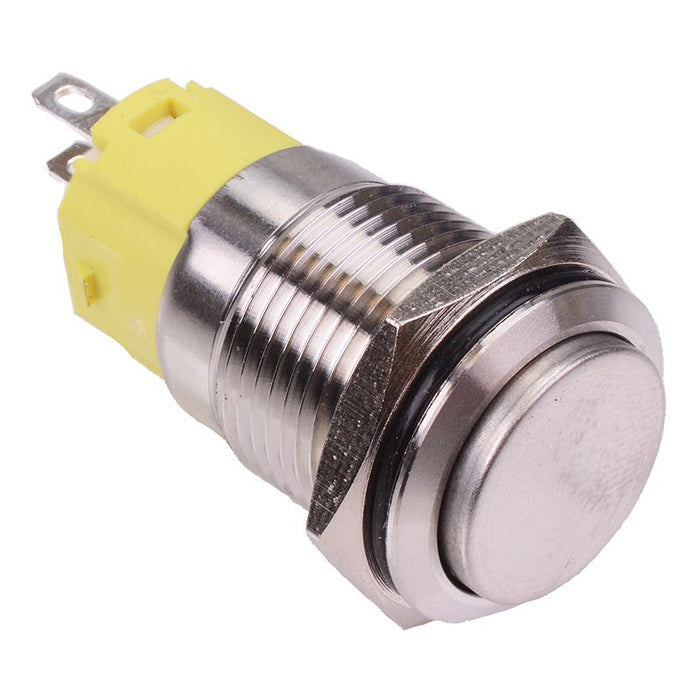

Raised Button On-(On) Momentary 16mm Vandal Push Button Switch SPDT
SKU 484998
MPN: 484998
Availability:
Only 4 left!
Original price
£5.52
-
Original price
£5.52
Original price
£5.52
£5.52
£5.52
-
£5.52
Current price
£5.52
Momentary vandal resistant push button switch with a raised button, stainless steel body and SPDT contacts. The switch features IP65 protection rating and 5A current rating, suitable for a wide range of applications.
Momentary On-(On) action IP65 protection rating 16mm panel cut-out diameter NO/NC contacts 2.8mm terminals Rating: 5A 250VAC Dimensions: 36.7 x 18mm (length x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 |
| Contact Configuration | SPDT |
| Contact Rating | 5A 250VAC |
| Current Rating | 3A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 16mm |
| Protection Level | IP65 |
| Switch Operation | On-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
