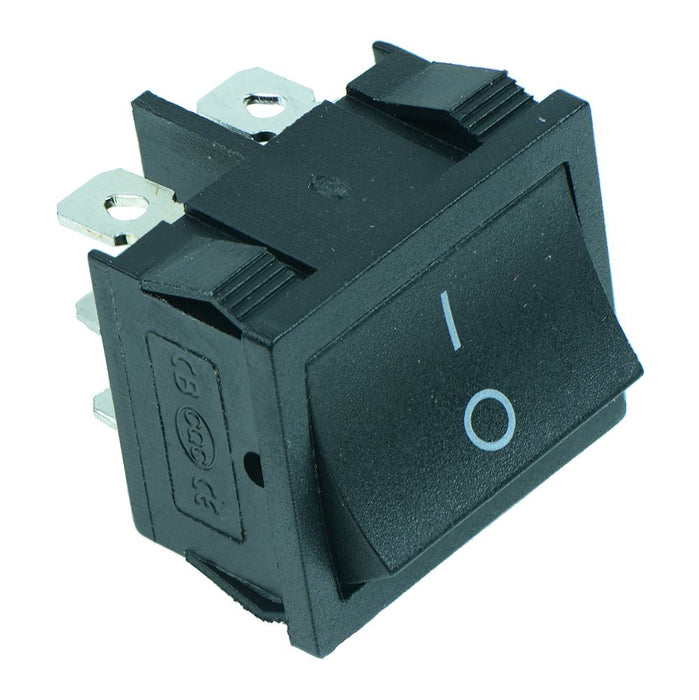

Rectangular On-On Rocker Switch DPDT 10A
SKU 130039
MPN: 130039
Availability:
228 in stock
Original price
£0.87
-
Original price
£0.87
Original price
£0.87
£0.87
£0.87
-
£0.87
Current price
£0.87
Rectangular DPDT rocker switch with quick-connect terminals and a reliable mechanism, suitable for repairing electrical appliances at a low cost.
On-On DPDT contacts Rating: 6(4)A 250VAC / 10A 125VAC 4.8 x 0.8mm terminals Panel cut-out: 22 x 19.5mm Dimensions: 24 x 21 x 18.3mm (Width x Length x Height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 40 Days |
| Contact Configuration | DPDT |
| Contact Rating | 6A 250VAC, 10A 125VAC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 22 x 19.5mm |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
