Rectangular Reed Switch Changeover 500mA 100V - PSC 175/30
by Comus
SKU 552597
MPN: S1515
Availability:
66 in stock
Original price
£7.83
-
Original price
£7.83
Original price
£7.83
Inc VAT
£7.83
-
£7.83
Current price
£7.83
Inc VAT

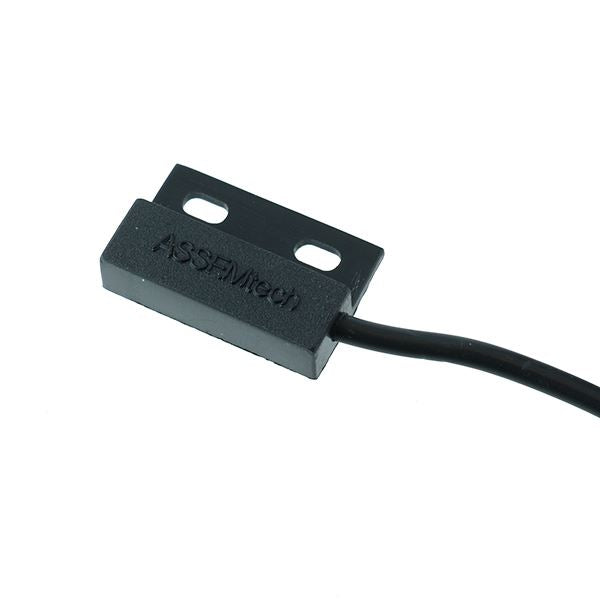

The PSC 175/30 is a prewired rectangular reed switch featuring normally closed contacts, moulded from black Nylon 66. The switch is suitable for applications including position and limit sensing, linear actuators, security system switch and door switch.
Suggested magnet: PSM (black) Changeover contacts Fixing slots Maximum switching voltage: 100VAC Maximum switching current: 0.5A Maximum switching capacity: 5W/VA Switching distance: 8mm min 3 x 0.14mm² PVC covered and insulated
Specification
| Back order lead time | 180 Days |
| Carry current | 1A |
| Contact configuration | SPDT |
| Material | Nickel Plated Brass |
| Maximum switching capacity | 5W/VA |
| Maximum switching current | 0.5A |
| Maximum switching voltage | 100VAC |
| Operating temperature | -20°C to +85°C |
