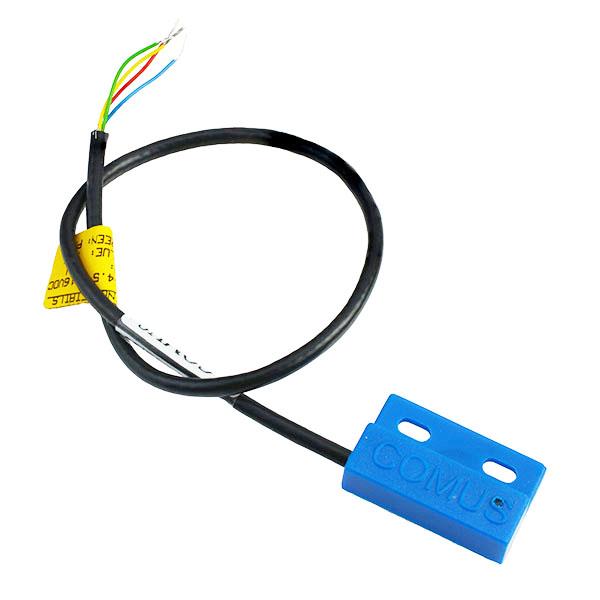

Rectangular Reed Switch SPNO 250mA - S1431

by Comus
SKU 552588

MPN: S1431

Availability:
Only 4 left!
Original price £25.24 - Original price £25.24
Original price
£25.24 Inc VAT
£25.24 - £25.24
Current price £25.24 Inc VAT
The S1431 is a rectangular reed switch featuring normally open contacts, LED indicator, PNP and NPN outputs. The switch is fully sealed to give maximum mechanical protection and minimise the ingress of dust and moisture.

  • Features fixing slots
  • Polystyrene case
  • Supply voltage: 10-20VDC
  • ON current: 25mA
  • Output type: open collector
  • Output current: 250mA
  • Minimum operating distance: 8mm
  • 4 x round 7/0.2 PVC screened and insulated

  • Note: When power is applied the red indication LED will glow dimly to indicate power is at the device. When a magnet is present i.e. on target the LED will illuminate at full brightness.
    Specification
    Back order lead time 180 Days
    Material Polystyrene
    Operating temperature -30°C to +70°C
    Output type Open Collector
