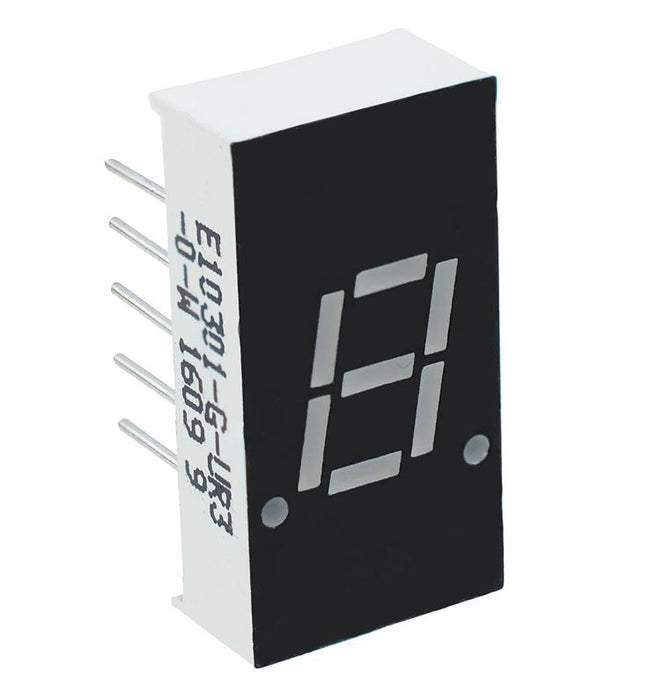

Red 0.30" Seven Segment Display Cathode LED
by Toyo LED
SKU 311176
MPN: E10301-J-UR3-0-W
Availability:
94 in stock
Original price
£0.60
-
Original price
£0.60
Original price
£0.60
Inc VAT
£0.60
-
£0.60
Current price
£0.60
Inc VAT
Single digit 7-segment display with excellent visibility and contrast. The LED provides a consistent brightness throughout the display and is suitable for PC Boards and Sockets mounting.
Common cathode 7-segment size: 0.30” Black background Dimensions: 19.0 x 10.06 x 6.1mm
Specification
| Back order lead time | 45 Days |
| Character height | 0.30" |
| Character width | 5.3mm |
| Colour | Red |
| Depth | 19mm |
| Forward current | 30mA |
| Forward voltage | 2.05V |
| Height | 5.5mm |
| Lens colour | White Diffused |
| Luminous intensity | 38mcd |
| Mounting style | Through Hole |
| Number of pins | 10 |
| Operating temperature | -40°C to +85°C |
| Package | 10.06 x 19.0mm |
| Packaging | Bulk |
| Power dissipation | 72mW |
| Wavelength | 635nm |
| Width | 10.06mm |
