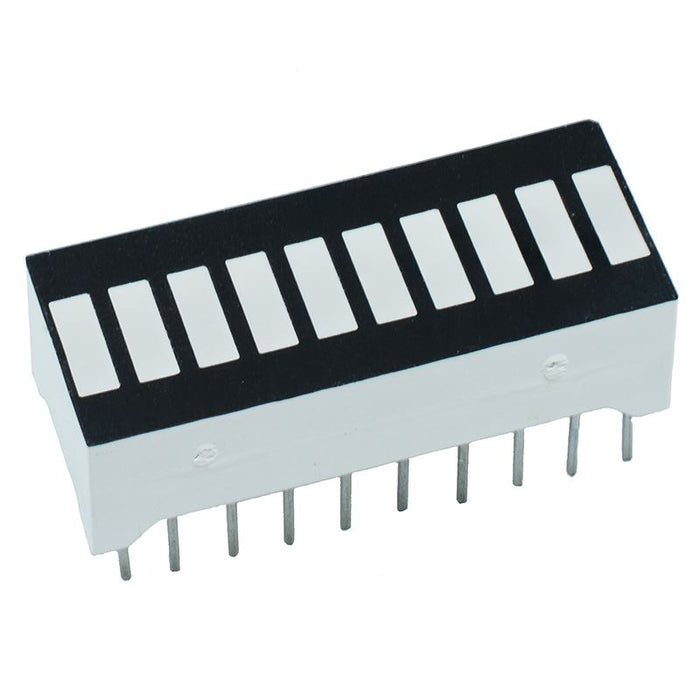

Red 10-Segment LED Bar Array Anode
by Toyo LED
SKU 311183
MPN: B101-A-UR3-0-W
Availability:
206 in stock
Original price
£0.97
-
Original price
£0.97
Original price
£0.97
Inc VAT
£0.97
-
£0.97
Current price
£0.97
Inc VAT
LED bar array with excellent visibility and contrast. The LEDs provide a consistent brightness throughout the display and are suitable for PCB mounting
Red LED White bar on a black face Common anode Can be end stacked to form longer lengths Bar size: 5.0 x 1.74mm Low current Dimensions: 25.5 x 10.1 x 7.9mm
Specification
| Back order lead time | 45 Days |
| Colour | Red |
| Depth | 10.1mm |
| Forward current | 30mA |
| Forward voltage | 2.05V |
| Height | 6.8mm |
| Lens colour | White Diffused |
| Luminous intensity | 38mcd |
| Mounting style | Through Hole |
| Operating temperature | -40°C to +85°C |
| Package | 25.4 x 10.1mm |
| Packaging | Bulk |
| Power dissipation | 72mW |
| Wavelength | 635nm |
| Width | 25.4mm |
