Red 12V 8mm Panel Indicator LED Light R9-73L-11
by SCI
SKU 490830
MPN: R9-73L-11 12V
Availability:
500 in stock
Original price
£1.28
-
Original price
£1.28
Original price
£1.28
£1.28
-
£1.28
Current price
£1.28

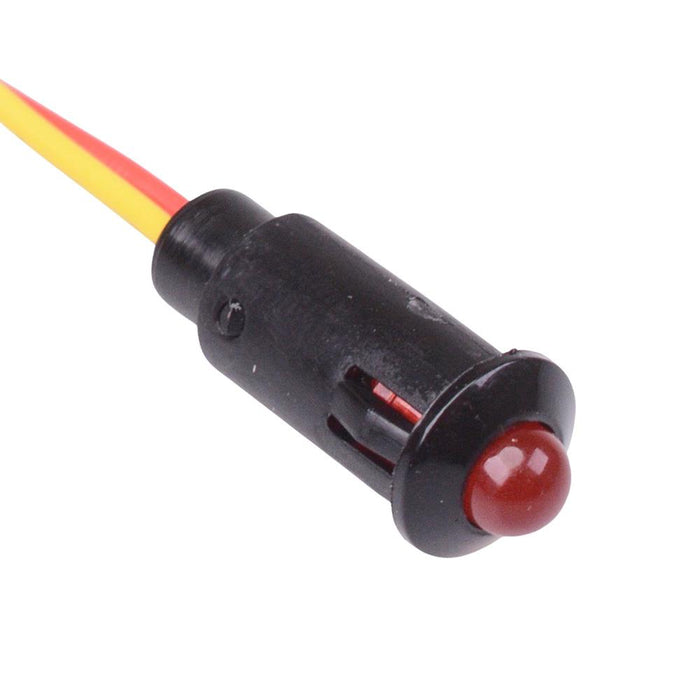

The R9-73L-11 is a 12V red LED panel indicator light featuring 8.2mm cut-out and prewired with 170mm leads, suited for signal and panel applications.
Red LED LED voltage: 12VDC Panel cut-out: 8.2mm Housing material: nylon Cable length: 170mm Cable size: 24AWG UL1007 LED forward current: 20mA Luminous intensity: 350mcd Viewing angle: 25° Dimensions: 22.5 x 9.4mm (height x diameter)
Specification
| Back Order Lead Time | 150 Days |
| Colour | Red |
| Diameter | 9.4mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 20mm |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 8.2mm |
| Voltage Rating | 12VDC |
