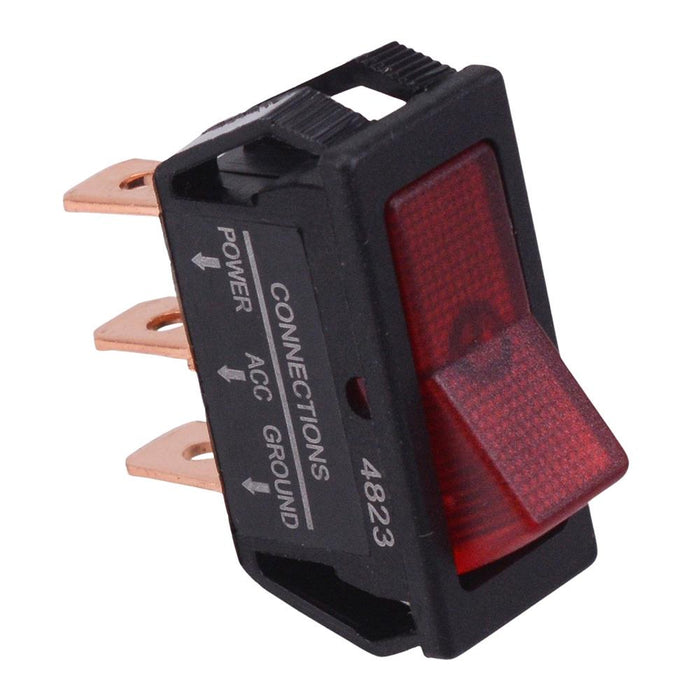

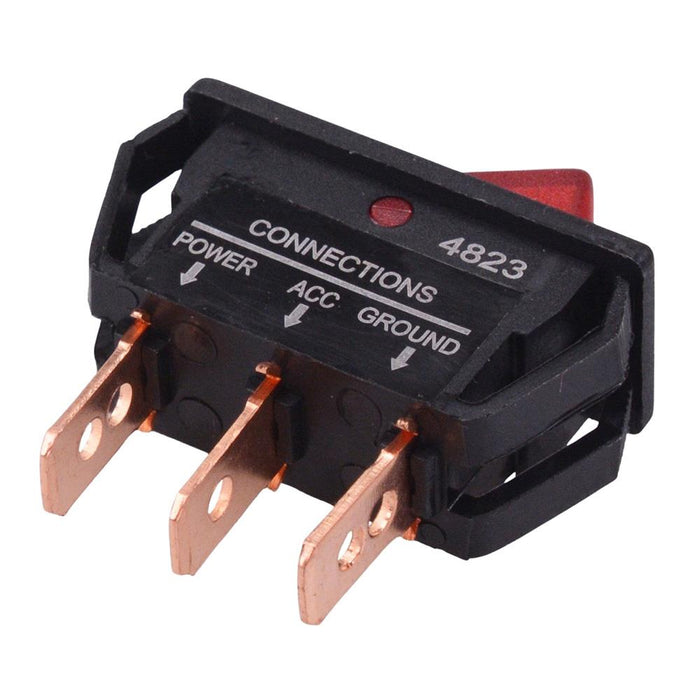

Red 12V illuminated On-Off Rectangle Rocker Switch SPST 20A R13-249B-01
by SCI
SKU 491450
MPN: R13-249B-01-BR
Availability:
16 in stock
Original price
£1.37
-
Original price
£1.37
Original price
£1.37
£1.44
£1.44
-
£1.44
Current price
£1.44
R13-249B-01 red illuminated 12V rectangle rocker switch featuring SPST contacts and On-Off function. The switch requires a 28.5 x 11.6mm panel cut-out and features 6.3mm quick connect terminals. The switch is rated up to 20A making it suitable for a wide range of DC applications.
Function: On-Off Contacts: SPST Red neon lamp illumination voltage: 12V Panel cut-out: 28.5 x 11.6mm Panel thickness: 0.75-4mm Rating: 20A 12VDC 6.3mm quick connect terminals Dimensions: 30.5 x 14.0 x 32.6mm (length x width x height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 20A 12VDC |
| Current Rating | 20A |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12VDC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Panel Cut Out | 30.5 x 14mm |
| Panel Thickness | 0.75-4mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 12VDC |
