Red 16mm Emergency Stop Switch IP40 NO/NC

SKU 490323

MPN: HBS1-AY-11TS/R

Availability:
43 in stock
Original price £5.23 - Original price £5.23
Original price
£5.23
£5.23 - £5.23
Current price £5.23

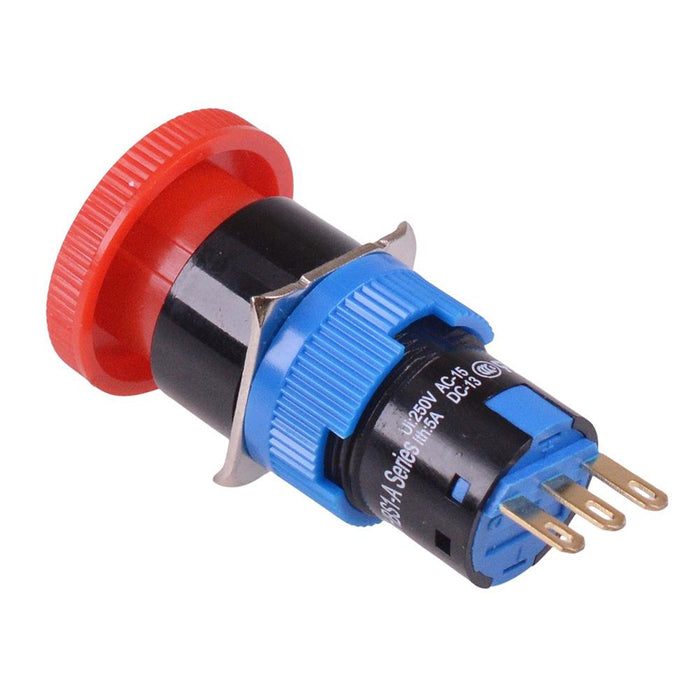

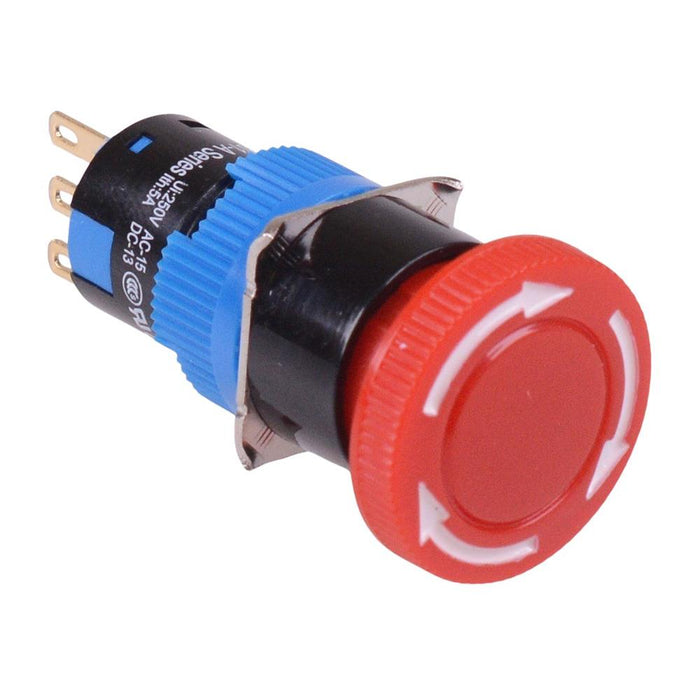

Red e-stop switch featuring a 1NO1NC contacts and red mushroom head with white markings. The switch requries a 16mm panel cut-out and features quick-connect terminals. The swich is suitable for a wide range of industrial applications requiring a compact emergency stop switch.

  • 1NO1NC contacts
  • Red 23.6mm mushroom head
  • Panel cut-out: 16mm
  • Panel thickness: 6mm max
  • Rated insulation voltage: 250V
  • Rated thermal current: 5A
  • 2.8x0.5 quick connect / solder terminals
  • Protection rating: IP40
  • Dimensions: 48.5 x 23.6mm height x diameter)
  • Specification
    Actuation Twist Release
    Back Order Lead Time 45 Days
    Colour Red
    Contact Configuration 1NO-1NC
    Contact Material Silver Alloy
    Contact Rating 5A 250V
    Current Rating 5A
    Electrical Life 50,000 Cycles
    Head Type Mushroom
    Illuminated No
    MOQ 1
    Mounting Style Panel
    Number of Positions 2
    Operating Temperature -25°C to +65°C
    Panel Cut Out 16mm
    Panel Thickness 6mm
    Protection Level IP40
    Terminal Type Quick Connect
    Voltage Rating 250V
