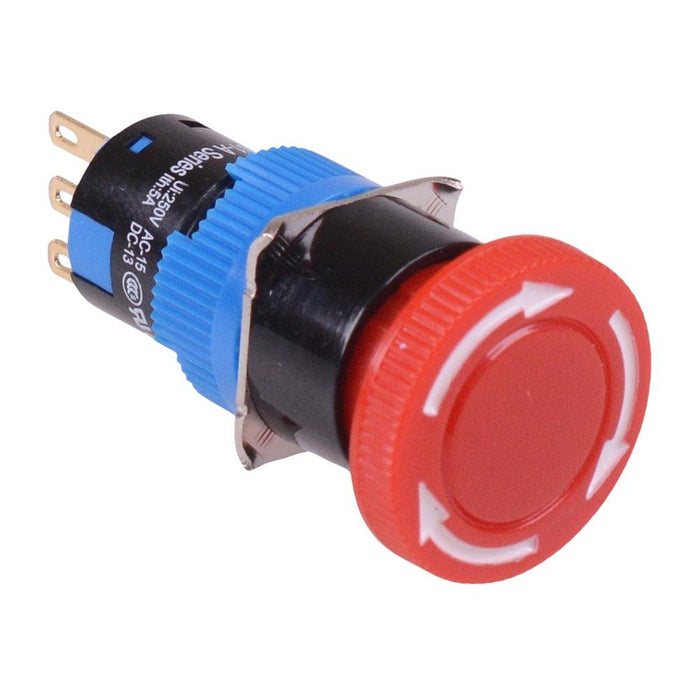

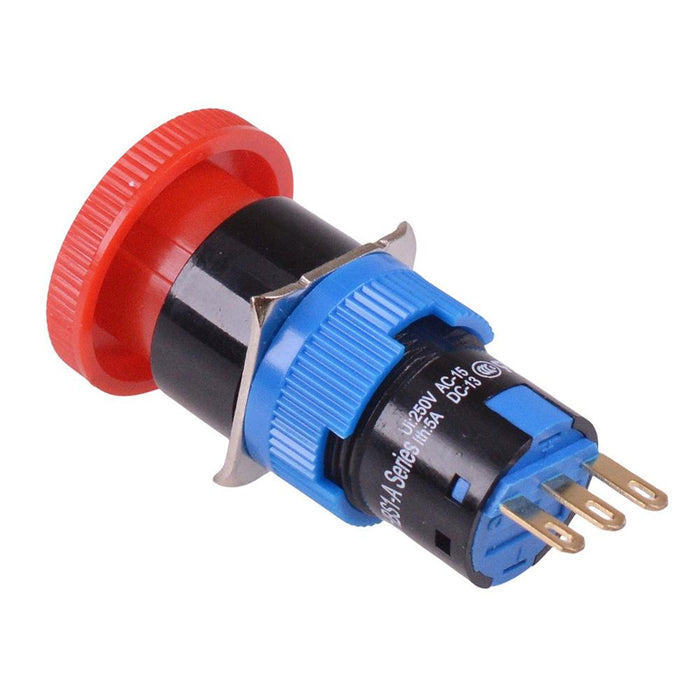

Red 16mm Emergency Stop Switch IP40 NO/NC
SKU 490323
MPN: HBS1-AY-11TS/R
Availability:
10 in stock
Original price
£5.23
-
Original price
£5.23
Original price
£5.23
£5.23
£5.23
-
£5.23
Current price
£5.23
Red e-stop switch featuring a 1NO1NC contacts and red mushroom head with white markings. The switch requries a 16mm panel cut-out and features quick-connect terminals. The swich is suitable for a wide range of industrial applications requiring a compact emergency stop switch.
1NO1NC contacts Red 23.6mm mushroom head Panel cut-out: 16mm Panel thickness: 6mm max Rated insulation voltage: 250V Rated thermal current: 5A 2.8x0.5 quick connect / solder terminals Protection rating: IP40 Dimensions: 48.5 x 23.6mm height x diameter)
Specification
| Actuation | Twist Release |
| Back Order Lead Time | 45 Days |
| Colour | Red |
| Contact Configuration | 1NO-1NC |
| Contact Material | Silver Alloy |
| Contact Rating | 5A 250V |
| Current Rating | 5A |
| Electrical Life | 50,000 Cycles |
| Head Type | Mushroom |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +65°C |
| Panel Cut Out | 16mm |
| Panel Thickness | 6mm |
| Protection Level | IP40 |
| Terminal Type | Quick Connect |
| Voltage Rating | 250V |
