Red 16mm Emergency Stop Switch IP65 NO/NC

SKU 490325

MPN: HBS1-AGQ16F-11TSG/J/PC/R

Availability:
50 in stock
Original price £6.34 - Original price £6.34
Original price
£6.34
£6.34 - £6.34
Current price £6.34

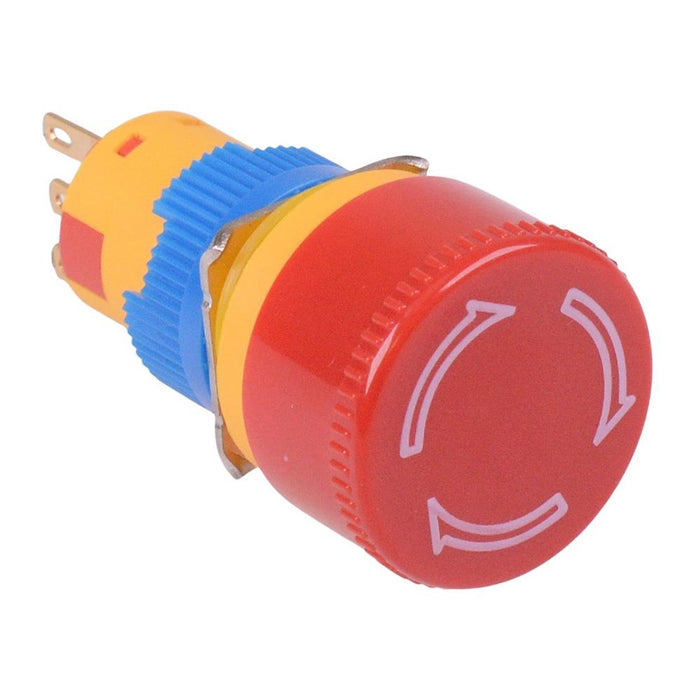

Red e-stop switch featuring a 1NO1NC contacts and red mushroom head with markings. The switch requries a 16mm panel cut-out and features quick-connect terminals. The swich is suitable for a wide range of industrial applications requiring a compact emergency stop switch.

  • 1NO1NC contacts
  • Red 24.2mm mushroom head
  • Panel cut-out: 16mm
  • Panel thickness: 5mm max
  • Rated insulation voltage: 250V
  • Rated thermal current: 5A

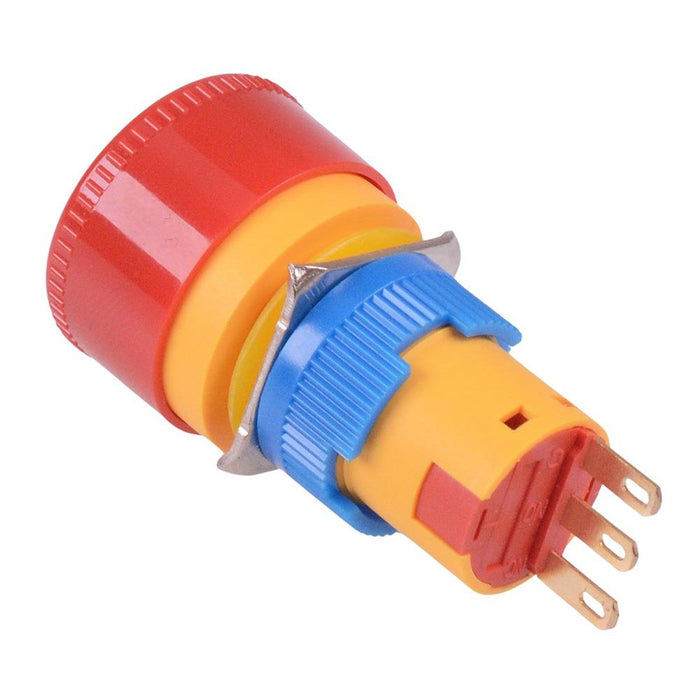

  • 2.8x0.5 quick connect / solder terminals
  • Protection rating: IP65
  • Dimensions: 48 x 24.2mm height x diameter)
  • Specification
    Actuation Twist Release
    Back Order Lead Time 45 Days
    Colour Red
    Contact Configuration 1NO-1NC
    Contact Material Silver Alloy
    Contact Rating 5A 250V
    Current Rating 5A
    Electrical Life 50,000 Cycles
    Head Type Mushroom
    Illuminated No
    MOQ 1
    Mounting Style Panel
    Number of Positions 2
    Operating Temperature -30°C to +65°C
    Panel Cut Out 16mm
    Panel Thickness 5mm
    Protection Level IP65
    Terminal Type Quick Connect
    Voltage Rating 250V
