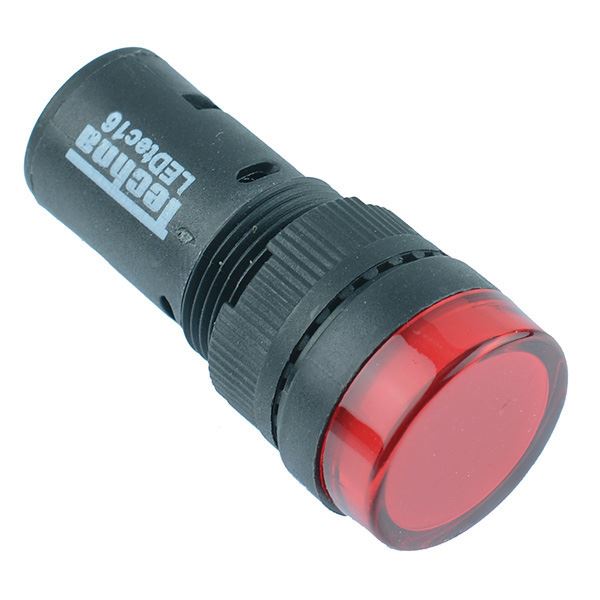

Red 16mm LED Pilot Indicator Light 12V

by Techna
SKU 480982

MPN: LEDtec16-Red-012Vac/dc

Availability:
35 in stock
Original price £2.79 - Original price £2.79
Original price
£2.79 Inc VAT
£2.79 - £2.79
Current price £2.79 Inc VAT
Red 12V LED indicator light from the LEDtec range utilising multi chip technology to provide a bright even illumination. The indicators featurea a fixing nut and screw terminals allowing easy installation for applications where space is at a premium.

  • Very low power consumption
  • 12Vac/dc voltage rating
  • IP44 protection level
  • LED lamp
  • 16mm panel cut-out diameter
  • 19mm head diameter
  • 30,000 hours operational life
  • Specification
    Back order lead time 5 Days
    Colour Red
    Diameter 19mm
    Forward current 20mA
    Lamp type LED
    Length 34mm
    Life expectancy 30,000 Hours
    Mounting type Panel Mount
    Operating temperature -25°C to +55°C
    Panel cut out 16mm
    Panel thickness 6mm
    Protection level IP44
    Voltage rating 12VDC
