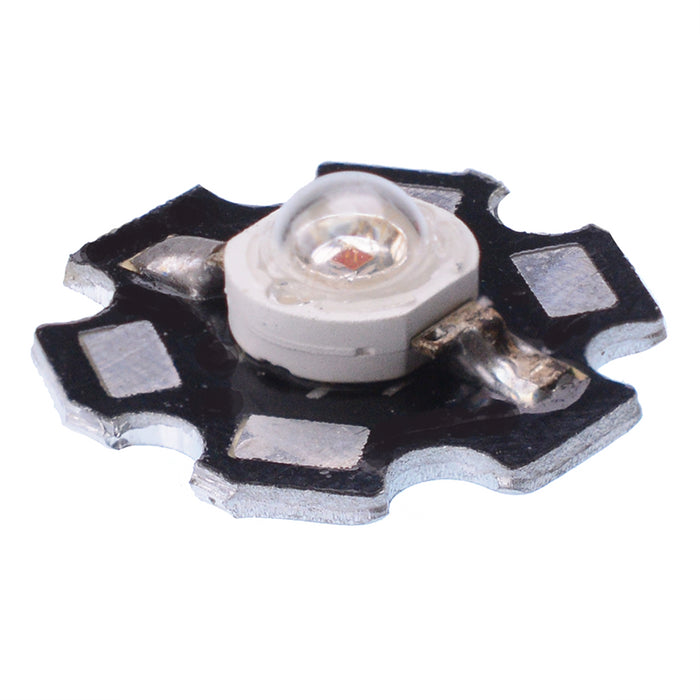

Red 1W Star High Power LED 45lm 135°

SKU 490468

MPN: HP60NVD

Availability:
494 in stock
Original price £0.74 - Original price £0.74
Original price
£0.74
£0.74 - £0.74
Current price £0.74
Red high power 1W LEDs featuring a high luminous flux, mounted to a heatsink for dissipating heat. The LEDs feature a low profile design with a small package suitable for a range of applications including backlighting, general illumination and indication.

  • Luminous flux: 45lm
  • Wavelength: 624nm
  • Viewing angle: 135°
  • Forward voltage: 2.2V
  • Forward current: 350mA, 500mA peak
  • Excellent weather resistance
  • Long lifespan
  • Width: 19.9mm (across flats)
  • Height: 6.65mm
  • Specification
    Back Order Lead Time 40 Days
    Colour Red
    Forward Current 350mA
    Forward Voltage 2.2V
    Lens Colour Clear
    Lens Shape Dome
    Luminous Flux 45lm
    Luminous Intensity 45lm
    MOQ 1
    Mounting Style Surface Mount
    Number of Pins 2
    Operating Temperature -40°C to 85°C
    Package PCB Substrate
    Packaging Bulk
    Power Dissipation 910mW
    Power Rating 1W
    Viewing Angle 135°
    Wavelength 624nm
