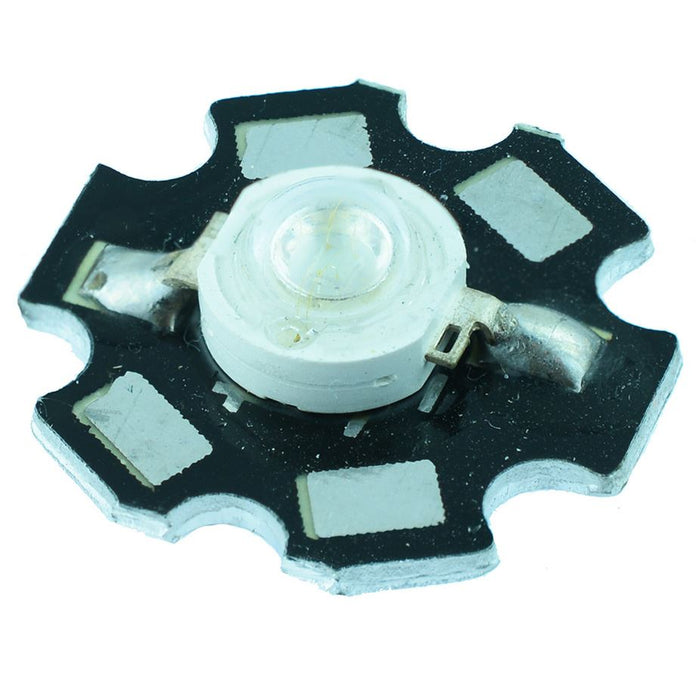

Red 1W Star High Power LED 55lm 140°

SKU 311517

MPN: TY-HP1UR-S

Availability:
31 in stock, ready to be shipped
Original price £0.86 - Original price £0.86
Original price
£0.86 Inc VAT
£0.86 - £0.86
Current price £0.86 Inc VAT
High power 1W LEDs mounted on a PCB substrate offering a high luminous intensity and excellent power consumption. The LEDs feature a wide viewing angle and are suitable for a range of applications including signage, signals, reading lights etc.

  • High luminous intensity
  • Excellent energy efficiency
  • Wide viewing angle
  • Long lifespan
  • Specification
    Colour Red
    Forward current 350mA
    Forward voltage 2.3V
    Lens colour Clear
    Lens shape Dome
    Luminous flux 55lm
    Luminous intensity 55lm
    Mounting style Surface Mount
    Number of pins 2
    Operating temperature -30°C to +110°C
    Package PCB Substrate
    Packaging Bulk
    Power dissipation 1W
    Power rating 1W
    Viewing angle 140°
    Wavelength 625nm
