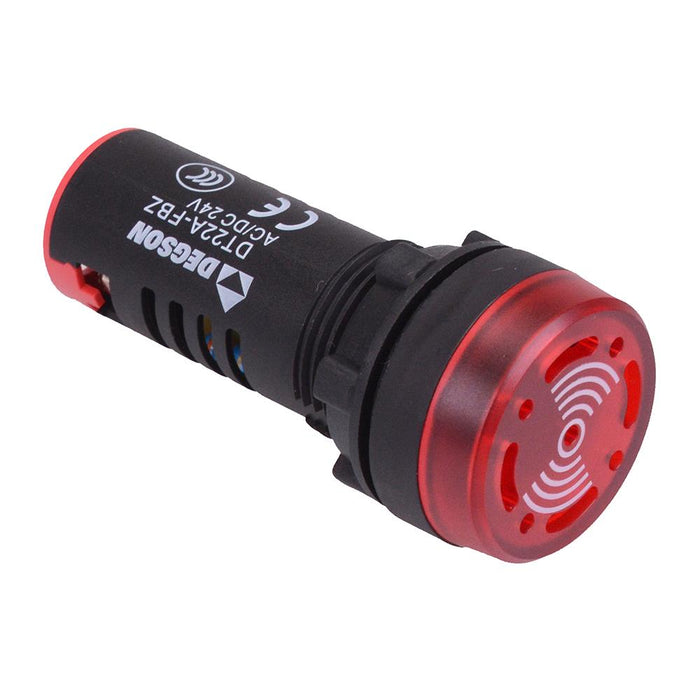

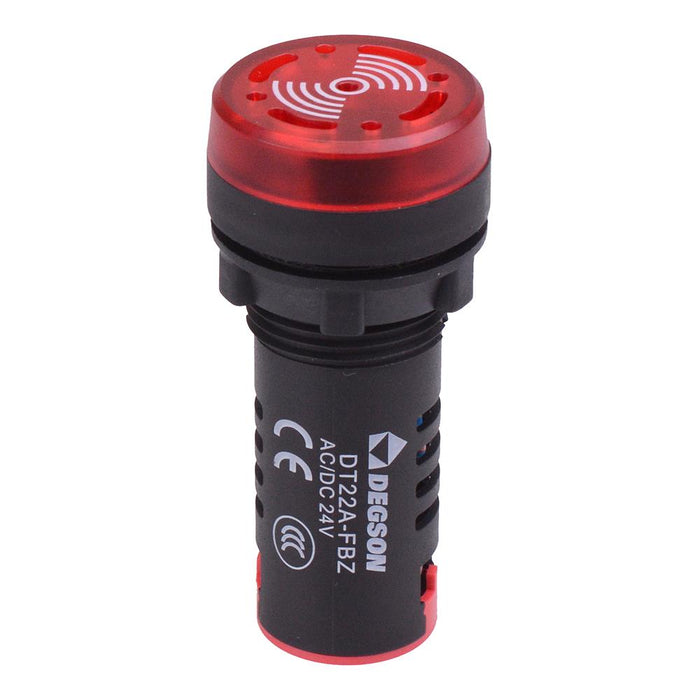

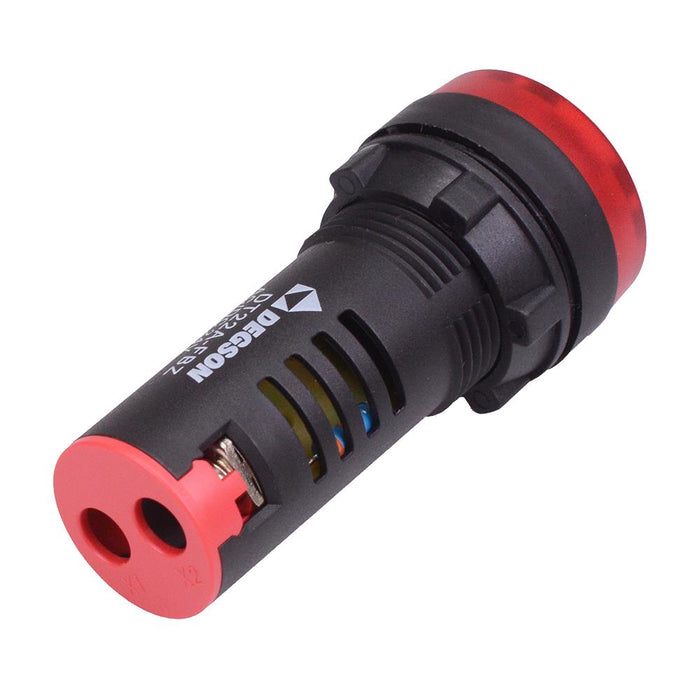

Red 24VDC Flashing Buzzer 22mm Pilot Light
by Degson
SKU 491935
MPN: DT22A-FBZ/RDAC/DC24VL
Availability:
107 in stock
Original price
£3.78
-
Original price
£3.78
Original price
£3.78
£3.97
£3.97
-
£3.97
Current price
£3.97
Red 24VDC LED pilot light combining a loud pulsing buzzer signal with visual indication. The indicators requires a 22mm panel cut-out and is ideal for use in alarm circuits to attract attention from a distance.
Red LED light with buzzer Screw terminals Rated voltage: 24VDC 20mA current Panel cut-out: 22mm Dimensions: 29.8 x 64.4mm (diameter x height)
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Diameter | 29.8mm |
| Forward Current | 20mA |
| Height | 64.4mm |
| Lamp Type | LED |
| Life Expectancy | 50,000 Hours |
| MOQ | 1 |
| Mounting Type | Panel Mount |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 22mm |
| Protection Level | IP40 |
| Voltage Rating | 24VDC |
