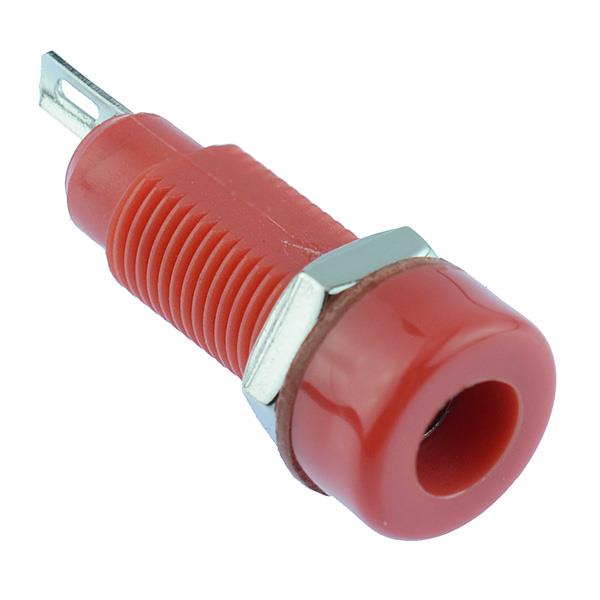

Red 4mm Panel Mount Test Socket R1-22

by SCI
SKU 481952

MPN: R1-22 Red

Availability:
32 in stock
Original price £0.53 - Original price £0.53
Original price
£0.53 Inc VAT
£0.53 - £0.53
Current price £0.53 Inc VAT
Red 4mm test sockets designed for mating with standard banana plugs and suitable for panel mount applications.

  • Size: 4mm
  • Panel cut-out: 8.2mm
  • Current rating: 10A
  • Solder termination
  • Panel thickness: 0.5mm-10mm
  • Dimensions: 30.9 x 11mm (Length x Diameter)
  • Specification
    Back order lead time 120 Days
    Colour Red
    Contact material Nickel Plated Brass
    Current rating 10A
    Housing material Nylon
    Mounting type Panel
    Number of poles 1
    Operating temperature -20°C to +80°C
    Panel cut out 8.2mm
    Termination method Solder
