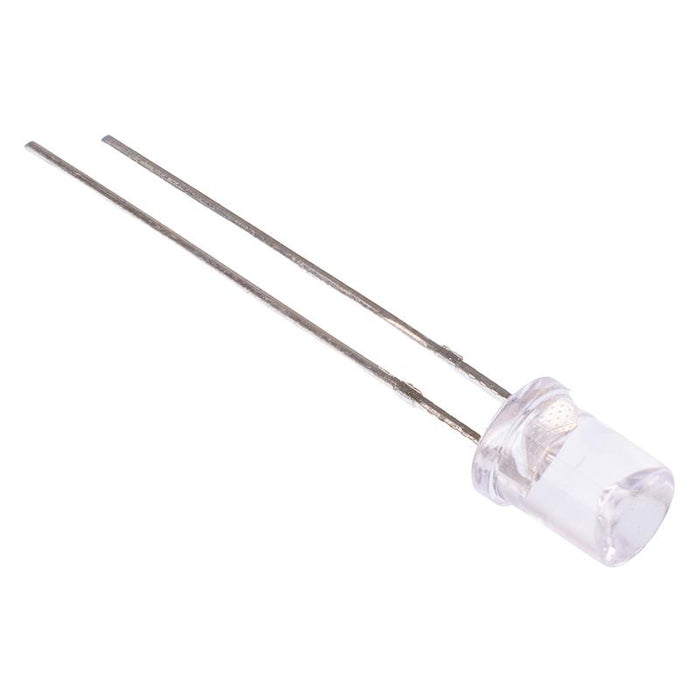

Red 5mm Concave Water Clear LED 70mcd 120°
by Luckylight
SKU 484951
MPN: LL-503VC2K-V1-1A
Availability:
450 in stock
Original price
£0.13
-
Original price
£0.13
Original price
£0.13
£0.13
£0.13
-
£0.13
Current price
£0.13
Red 5mm concave LED featuring a water clear package and 70mcd luminous intensity suitable for applications including use as indicators, backlighting and illumination.
Luminous intensity: 70mcd Wavelength: 624nm Viewing angle: 120° Forward voltage: 2.0V Forward current: 25mA Suitable for through-hole mounting Cathode identified as the shorter lead 2.54mm lead pitch Water clear lens Excellent weather resistance Long lifespan
Specification
| Back Order Lead Time | 5 Days |
| Colour | Red |
| Diameter | 5mm |
| Forward Current | 25mA |
| Forward Voltage | 2.0V |
| Lens Colour | Clear |
| Lens Shape | Concave |
| Luminous Intensity | 70mcd |
| Mode | Constant |
| MOQ | 5 |
| Mounting Style | Through Hole |
| Number of Pins | 2 |
| Operating Temperature | -40°C to +85°C |
| Package | 5mm |
| Packaging | Bulk |
| Power Dissipation | 65mW |
| Viewing Angle | 120° |
| Wavelength | 624nm |
