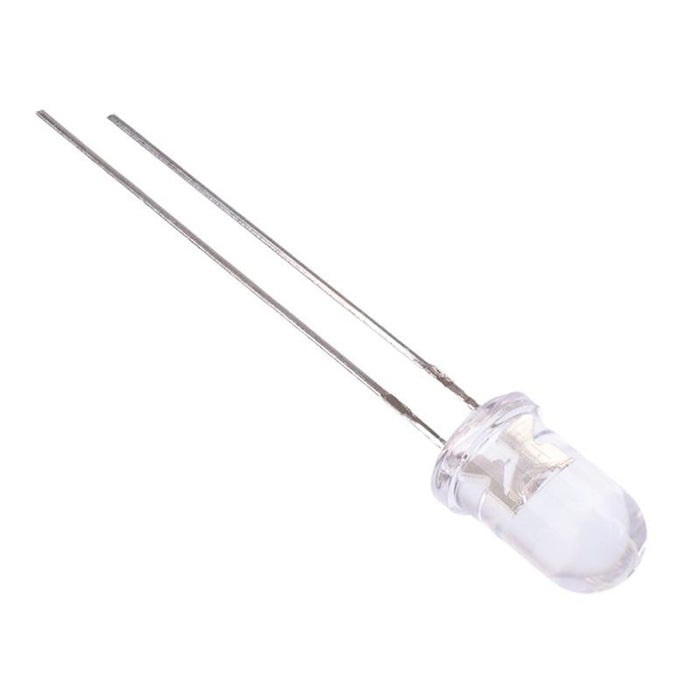

Red 5mm Water Clear LED 5000mcd 15°
by Luckylight
SKU 484959
MPN: LL-503VC2E-2BC
Availability:
376 in stock
Original price
£0.17
-
Original price
£0.17
Original price
£0.17
£0.17
£0.17
-
£0.17
Current price
£0.17
Red 5mm LED featuring a clear lens and 5000mcd luminous intensity suitable for applications including use as indicators, backlighting and illumination.
Luminous intensity: 5000mcd Wavelength: 624nm Viewing angle: 15° Forward voltage: 2.0V Forward current: 25mA Suitable for through-hole mounting Cathode identified as the shorter lead 2.54mm lead pitch Clear lens Excellent weather resistance Long lifespan
Specification
| Back Order Lead Time | 5 Days |
| Colour | Red |
| Diameter | 5mm |
| Forward Current | 25mA |
| Forward Voltage | 2.0V |
| Lens Colour | Clear |
| Lens Shape | Round |
| Luminous Intensity | 5000mcd |
| Mode | Constant |
| MOQ | 5 |
| Mounting Style | Through Hole |
| Number of Pins | 2 |
| Operating Temperature | -40°C to +80°C |
| Package | 5mm |
| Packaging | Bulk |
| Power Dissipation | 60mW |
| Viewing Angle | 15° |
| Wavelength | 624nm |
