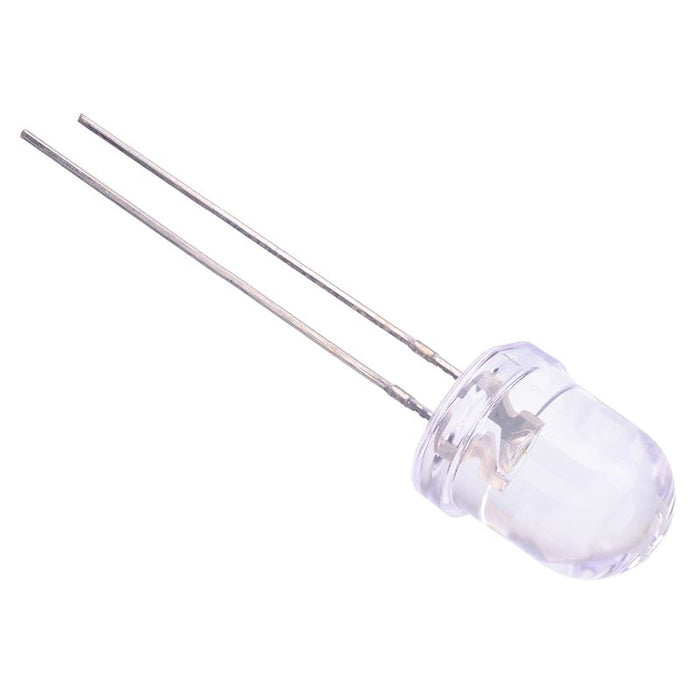

Red 8mm Water Clear LED 6500mcd 30°
by Luckylight
SKU 484850
MPN: 803VC2C-4CD
Availability:
1270 in stock
Original price
£0.21
-
Original price
£0.21
Original price
£0.21
£0.21
£0.21
-
£0.21
Current price
£0.21
Red 8mm LED featuring a water clear package and 65000mcd luminous intensity suitable for applications including use as indicators, backlighting and illumination.
Luminous intensity: 6500mcd Wavelength: 624nm Viewing angle: 30° Forward voltage: 2.0V Forward current: 25mA Suitable for through-hole mounting Cathode identified as the shorter lead 2.54mm lead pitch Water clear lens Excellent weather resistance Long lifespan
Specification
| Back Order Lead Time | 40 Days |
| Colour | Red |
| Diameter | 8mm |
| Forward Current | 25mA |
| Forward Voltage | 2.0V |
| Lens Colour | Clear |
| Lens Shape | Round |
| Luminous Intensity | 6500mcd |
| Mode | Constant |
| MOQ | 5 |
| Mounting Style | Through Hole |
| Number of Pins | 2 |
| Operating Temperature | -40°C to +80°C |
| Package | 8mm |
| Packaging | Bulk |
| Power Dissipation | 60mW |
| Viewing Angle | 30° |
| Wavelength | 624nm |
