Red / Black Dual 4mm Banana Test Socket 10A 60VDC BC-119
by SCI
SKU 491363
MPN: BC-119
Availability:
10 in stock
Original price
£2.50
-
Original price
£2.50
Original price
£2.50
£2.62
£2.62
-
£2.62
Current price
£2.62

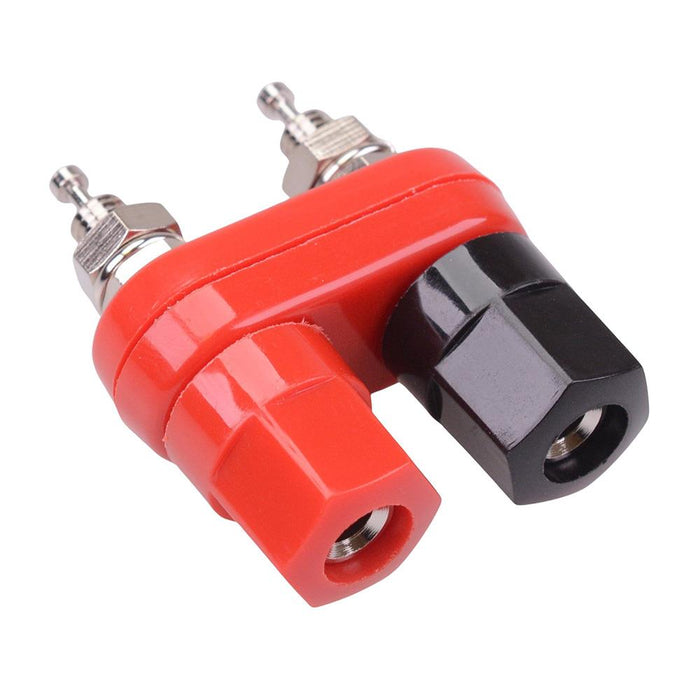

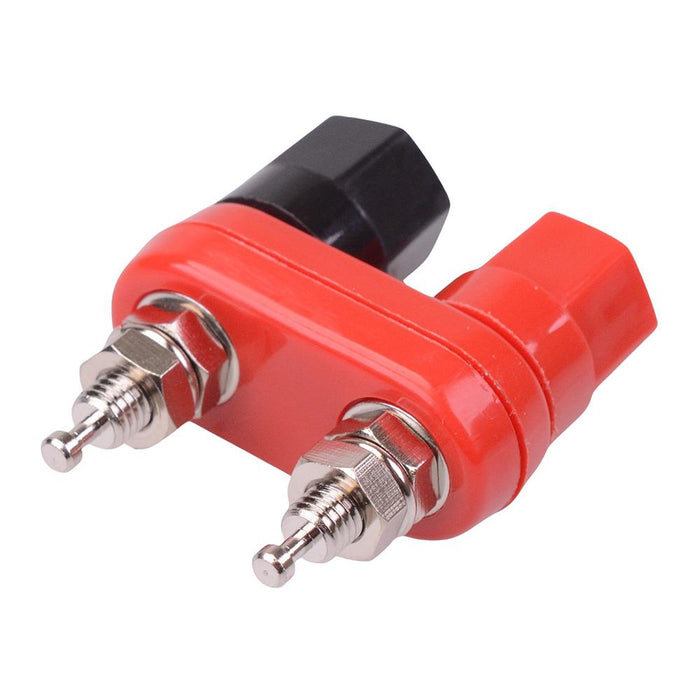

The BC-119 is a dual 4mm banana test socket featuring nickel plated brass contacts and requires a 12.5mm mounting hole. The socket features a 10A 60VDC rating and is terminated by screw or solder. The socket is suitable for a wide range of test and prototype applications.
Dual 4mm banana test socket Colour: red / black Rating: 10A 60VDC Panel cut-out: 12.5mm Contact material: nickel plated brass Dimensions: 43.3 x 34.9 x 16.0 (height x length x width)
Specification
| Back Order Lead Time | 150 Days |
| Colour | Red / Black |
| Current Rating | 10A |
| MOQ | 1 |
| Mounting Type | Panel |
| Number of Poles | 2 |
| Panel Cut Out | 12.5mm |
| Termination Method | Screw |
| Voltage Rating | 60VDC |
